Air Jack 60 C PTFE hose kit
A premium AN-6 PTFE hose kit with PTFE tubing and precision engineered full flow hose ends, designed to create a reliable and efficient soft line system for the Nuke Performance Air Jack 60C and Air Jack 90C. strong>
Installation of the Nuke Performance Air Jack 60C air outlet is made easy with this PTFE hose kit, designed for 8-30 BAR (120-435 PSI). It contains everything you need for a 3 or 4 piece air jack setup, allowing a seamless connection between your chosen valve and the air jack.
• Works for both 8 BAR (120 PSI) and 20 BAR (290 PSI)
• Includes 10m / 32.8ft Full Flow PTFE AN-6 Hose
• Fits 3/4 Air Jack 60C / 90C Kits for Motorsport
• Quick and easy plumbing with included hose ends
• Connects with 90 degree hose ends at all 5 connections
This Nuke Performance kit includes all the necessary AN-6 Coupling to connect the air intakes to your chosen valve. Easy to install, it comes with Full Flow AN-6 PTFE tubing and the required hose ends, and Coupling for either a 3 or 4 piece air jacket set.
Comes with all Couplings needed to connect your connection valve to your air outlets.
PTFE tubing kit includes 90 degree hose ends for each air outlet and a female AN-6 90-degree adapter that easily connects to any Nuke Performance air outlet lance connection valve (found here). With the included T-block adapters, this kit allows for easy routing in most vehicle setups, whether you're using a 3-piece or 4-piece configuration.
The PTFE tubing kit provides a durable and flexible installation option. However, it is slightly heavier than the ultralight hardline set offered by Nuke Performance, saving almost 3kg (2.20lb). However, the PTFE kit is easier to install compared to the aluminum hardline kit, especially when routing in more open bays. it includes 10 m (32.8 ft) of AN-6 PTFE tubing. When purchasing one of the available air jack kits (available here), a connection kit may be included.
• Air Jack PTFE Hose Kit Specifications
For more information on specifications, please refer to the product manual.
| Max Operating Pressure | 40 BAR (580 PSI) |
| Compatibility | Compressed air, argon, nitrogen * |
| PTFE hose liner | PTFE (Teflon) liner |
| PTFE hose braid | Stainless steel and Nylon |
| Temperature Range | -70°C to 250°C (-94°F to 480°F) |
| Conductive Inner Lining | YES |
| For Motorsport Use | YES |
| AN6 hose working pressure | 205 BAR (3000 PSI) |
| AN6 hose burst pressure | 680 BAR (10000 PSI) |
| AN6 hose inner diameter | 8.2mm (0.32") |
| AN6 Hose Outer Diameter | 11.5mm (0.44") |
| Part # | 580-10-910 |
| EAN | 7340209507829 |
* Nuke Performance Air Jacks and their accessories should not be used with gases other than those listed in the compatibility list.
• Download User Manual (.pdf)
• Accessories / Spare parts
• How to install a PTFE line (FAQ)

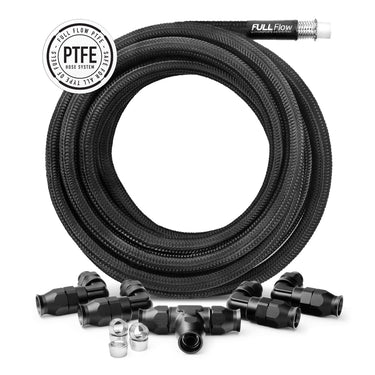

Air Jack PTFE tubing kit includes:
1 x AN-6 female to PTFE, 90 degree tubing end
4 x AN-6 ORB male to PTFE , 90 degree tubing end *
3 x T-coupling for AN-6 PTFE tubing **
10 m (32.8 ft) Full Flow AN-6 PTFE Hose
4 x 1/4 BSPP to AN-6 female adapter ***
* Only 3 pcs are used on a 3 pcs air jack kit, the 4th is not needed
** Only 2 pcs are used on a 3 pcs air jack kit, the 4th is needed not
*** Only used when installing Air Jack 90C, for Air Jack 60C these are not needed
