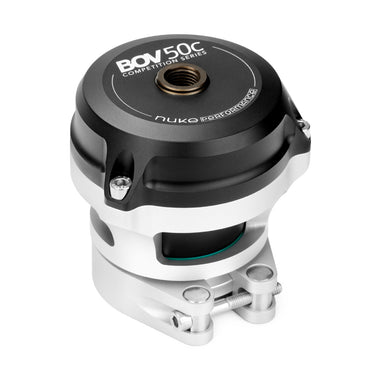

Blow off valve BOV50C V band

Second generation blow-off valve from Nuke Performance, with ground-breaking function and even faster response. Highest possible flow capacity and unmatched performance.

BOV50c is the upgraded version of the classic Blow Off Valves from Nuke Performance. Uses the same flange as the old one, a quick and easy change without the need for new intake pipes. Its 50mm (1.97") valve and superior improved diaphragm ensure fast response and precise boost release.

• Improved reinforced diaphragm technology
• Fast response and precise boost release
• Billet aluminum V-Band clamp and flange included
• 1/4 BSPP top mount vacuum port
• Replaceable setting spring, supports 250 to 1600hp+
• Lightweight blow off valve for motorsport installations

Equipped with a low friction valve guide, the BOV50c V-Band blow off valve offers an extremely fast response and is ready for some serious boost and power.We believe this upgraded version of the popular first generation dump valve has the highest flow capacity for an atmospheric blow off valve.

• Easy to connect to your intake manifold with the included V-Band flange and clamp, safe and secure installation even when pushing your engine to its limits.
Nuke Performance Blow Off Valve The BOV50c V-Band comes with an included aluminum billet V-Band clamp and weldable aluminum flange.This provides a safe and secure installation even when pushed to the limit.

• Aluminum 60mm V-Band clamp and flange included
• Optional 51mm (2") hose fitting available - mount the V-band to your silicone hose

A stainless steel flange is included available if needed and we also have a 51mm (2") hose adapter (available here) ) that allows you to mount the blow off valve to a silicone hose without the need for welding or custom fabrication.
Reserved Aluminum V-Band Flange Part # : 910 -02-101
Stainless Steel V-Band Flange Part #: 910-02-102
Spare Aluminum 60mm V-Band Clamp Part # : 910-02-101
51mm Hose Adapter for BOV50c Part # : 920-05-101

Select BOV spring pressure rating based on your engine vacuum reading on idle when the engine is at ideal operating temperature. Boost is not related to spring pressure only. The lowest spring (Light Gray) is specifically designed for use with turbochargers.
BOV50c Light Gray Spring Part # : BOV50c Green Spring Part # : 9200-01-017
BOV50c Magenta Spring Part # : strong> 9200-01-018
BOV50c Blue Spring Part # : 9200-01-019 (pre-installed)
BOV50c Red Spring Part # : 9200-01-020
BOV50c Black Spring Part # : 9200-01-021

• BOV50c uses improved diaphragm technology and low-friction valve control to ensure quick response and seamless operation for all needs between 200 to 1600 hp+.
The valve with a 50mm diameter moves smoothly with minimal friction, thanks to the Teflon-treated hard-anodized diaphragm guide.This ensures reliable performance even during rigorous motorsport applications.

• A single BOV50c supports anywhere from 200 to 1600 hp+

The new superior Nuke Performance blow-off valve The BOV50c V-Band has an unmatched fast response and seamless operation that promotes efficient turbo-spooling and maximum performance.The new reinforced diaphragm ensures exceptional durability, reducing maintenance requirements.

• The top-mounted 1/4 BSPP vacuum port gives you endless possibilities to connect the blow-off valve to your vacuum line.
With the 1/4 BSPP top-mounted the vacuum port is easily linked to your vacuum line for boost reference. We offer a wide range of Couplings, including Barbed Tubing Coupling and Quick Connect Tubing Adapters, available in straight and banjo versions. To ensure exact functionality in line with our specifications, we recommend using a 6mm ID hose or tubing.
1/4 BSPP Banjo Quick Connect to 6mm tubing Part # : 300-10-119
1/4 BSPP Banjo Qucik Connect to 8mm Hose Part #: 590-10-104
1/4 BSPP Straight Quick Connect to 6mm Hose Part # : 300-10-103
1/4 BSPP Straight Barb Fitting for 4mm Hose Part # : 300-10-113
1/4 BSPP straight barb for 6mm tubing Part # : 300-10-111
1/4 BSPP straight barb for 8mm tubing Part # : 300-10-110

• What is the purpose of a blow-off valve, and how it works
An atmospheric (like the BOV50c from Nuke Performance ) releases the boost into the atmosphere when the throttle closes, preventing compressor shock and ensuring turbo life.A BOV is critical to turbo life but also plays an important role in improving performance spin up faster when the throttle valve opens again.

The required vacuum reference "detects" the throttle valve closing, which prompts the valve to open and release excess boost. The Nuke Performance BOV50c uses an oversized 1/4 BSPP vacuum port, which ensures that the vacuum reading is accurate and fast. To learn more about how a blow-off valve works, see our FAQ on "How a blow-off valve works." blow off valve".

• Designed and developed in Sweden, ensuring the highest possible precision, quality and performance.
Developed and designed in Sweden, in-house by Nuke Performance. The Nuke Performance Blow Off Valve BOV50c V-Band is of the highest possible quality and embodies the exceptional standards characteristic of all lightweight motorsport products from Nuke Performance. The BOV50c is developed together with worldwide motorsport teams, ensuring that this second generation surpasses the first and meets the absolute highest standards, or even sets a new standard for itself.

There is no substitute for the quality and performance of Nuke Performance.

• Blow Off Valve BOV50c V-Band Specifications:
For more information on specifications, see the product sheet.

* all dimensions without included V -Band flange and clamp
** first generation BOV50, both V-Band and Hose Connection Versions

• BOV50c Spring Pressure Chart
Measure engine vacuum at idle and with engine at operating temperature.

* BOV50c supplied with a pre-installed blue spring
** used for supercharger applications only

• Tuning Springs for BOV50c

Select BOV spring pressure rating based on your engine's idle vacuum reading when the engine is at operating temperature.
Boost is not related to spring pressure; it is only associated with vacuum.

• Nuke Performance Blow Off Valve BOV50c V-Band Includes:
1 x Atmospheric Blow Off Valve , BOV50C
1 x Pre-installed Blue Spring (-0.53 to -0.65 BAR)
1 x Aluminum V-Band Clamp for 60mm Flanges
1 x Aluminum 60 mm V-band flange
1 x O-ring 51x2 mm (Viton) for V-band flange

• Download product sheet (.pdf)
• Accessories/spare parts
• FAQ: How does a blow-off valve work
