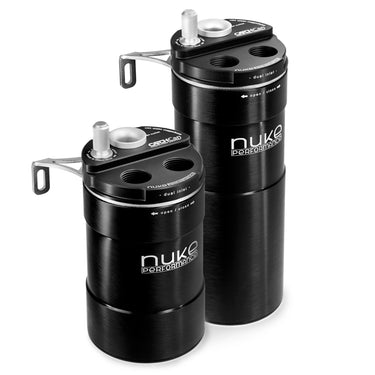

Competition Catch Can 1.0 liter

Nuke Performance universal dual inlet oil can. Available in 0.5 liter and 1.0 liter versions, both with the unique dual filtration.

Universal Dual Inlet Catch Can with the unique dual filtration design. Now equipped with dual AN-10 ORB inlets for easy customization and installation. Dual filtration valves for racing and motorsport use as well as for street and tuning. Can be used for both atmospheric and recirculating settings.

• Dual AN-10 inlets, choose between single or dual inlets
• Stainless steel filtration media
• Made in Sweden
• 300 micron stainless steel filtered outlet
• Anodized dipstick for easy reading of internal level
• Now with AN-10 ORB, for the highest possible flow

• Internal Billet Filtration Unit - rigorous filtration
The unique Internal Billet Filtration Unit in combination with our 300-micron recessed filter disc gives you extremely accurate filtration of your crankcase gases.
“IBFU” includes stainless steel filter media that maximizes condensation of the contaminants in the gases with no or minimal flow loss. The media is both replaceable and cleanable and sold as a spare when needed.

• 300 micron filter disc, no need for external filters strong>
Equipped with our unique 300 micron filter disc that prevents particles from escaping the catch can, the filter disc is used both when atmospheric and recirculating setups are used. The Dual Inlet Competition Catch Can gives you maximum filtration, with the 300 micron filter disc with its own surge protection mounted on the outlet port, making this the first Catch Can that can be used for both atmospheric and recirculating installations without adding an external filter on top.

• Used for both atmospheric and recirculating installation
Without further confusion, the oversized chamber allows the gases to flow freely inside the catch can. This in combination with the available options for outlet Coupling which allows you to choose between atmospheric and circulating settings without the need for an external filter. To meet our customers' demands for the highest possible flow and easy access to various Couplings, we now supply our oil catch cans with AN-10 ORB threads, ready to use AN-10 ORB Coupling for the highest possible flow and available in a large variety. Additional AN-10 ORB to AN-6, AN-8, AN-10 and AN-12 Plug sold separately as an accessory.
AN-10 ORB Plug Part # : 700-04 -117 *
AN-10 ORB to AN-6 male part # : 700-01-108
AN-10 ORB to AN-8 male part # : strong> 700-01-109
AN-10 ORB to AN-10 trade #: 700-01-110
AN-10 ORB to AN-12 trade # : 700-01-111
* used for configuration of an inlet, blocks the additional inlet port. span>

• Developed with high demands from motorsport
Competition Catch Can comes in two sizes, 0.5 liter and 1.0 liter (1.06 quart). The 1.0 liter version exceeds the US motorsport regulation which requires 1 liter capacity. To be able to mount it with a perfect fit, we include the stainless steel bracket, infinitely rotatable in 360 degrees. Our series of oil catch cans are developed with worldwide motorsport teams, these catch cans are tuned to perform in all conditions and for all horsepower needs.

• Optional peacock drain kit available for quick draining
Draining is made easy with the optional peacock valve that connects to the 1/4 drain thread at the bottom. It comes with a 1/4" peacock valve that fits right into the bottom of the catch can. Route the included 2 m / 6 ft hose to an easily accessible location, such as the wheelhouse. This makes it easy to drain/collect the residue without having to disassemble the catch can from the vehicle.
Catch Can Drain Kit Part # : 265-10-101 p>

• Made in Sweden, guarantees the highest possible quality
Developed, designed and manufactured in Sweden, in-house by Nuke Performance This is of the highest possible quality and with the same characteristics as all other lightweight motorsports from Nuke Performance.
This guarantees the highest possible quality - there is no substitute for the quality. of Nuke Performance.

• Competition Catch Can 0.5 Liter Specifications
For more information on specifications, contact us directly.

p>

• Competition Catch Can 1.0 Liter Specifications
For more information on specifications, please contact us directly.

* without included / extra accessories
** Meets dictated regulations including SCCA, NASA, Formula D

• Nuke Performance Competition Catch Can 0.5 / 1.0 liter Includes:
1 x 0.5 / 1.0 liter capacity can
1 x 300 micron filter disc for the outlet port
1 x Internal Billet filtration unit with stainless filter media steel
1 x 1/4 BSPP plug

• Product update 2022:
To satisfy our customers´ wishes, our oil catch cans are now supplied with AN-10 ORB threads.Large range of Coupling (see AN-10 ORB range) and even higher flow.

• Download product sheet (.pdf)
• Accessories / Spare parts
