Air Jack 90 Complete Complete Set 2pcs, 8bar

Complete set of 2pcs Nuke Performance 8 BAR / 120 PSI Air Jacks 90 Competition: Fast, light, reliable and easy-to-use air jack kits.

A product created out of the motorsport demand for an easy-to-use, light and reliable air jack setup that can be activated by an air supply pressure as low as 8 BAR / 120 PSI. Lifts your vehicle to new heights using a standard workshop compressor.

• Lightweight motorsport onboard air intake
• 8 BAR / 120 PSI working pressure
• Works with standard workshop air compressors
• Complete set with jacks, safety support and hose kit
• 2 sets lift 804 kg / 1772 lb at as low as 8 BAR / 120 PSI
• Optimize your tire changes for drag racing and drifting
• Total lift length of 251 mm / 9.88"

The Nuke Performance 8 BAR (120 PSI) Air Jack 90 Competition is fast, light, reliable and extremely easy to use and can be activated with an air supply pressure as low as 8 BAR (120 PSI) Prepare for anything that can go wrong under the tires and with these air jacks you are ready for quick and efficient repairs so you can quickly hit the drag strip. sacrifice functionality.It features a high-strength aluminum piston rod for long-lasting durability.The inner bearings are constructed of high-strength, low-friction polyoxymethylene - these air jacks are tough to withstand the rigors of worldwide motorsport.

• Works with an 8 BAR (120 PSI) standard workshop air jack The 90C has an optimum operating pressure of between 6-12 BAR (87 - 174 PSI), this means it will work with a standard 8 BAR (120 PSI) air compressor so you don't need to carry a huge and expensive nitrogen tank. As most workshop air compressors are available in between 8 - 12 BAR (116 - 174 PSI) this is what these air outlets are specified to operate with. As low as 8 BAR (116 PSI) these air jacks will lift 402 KG (886 LB) each, and in a 2-jack system that results in a whopping 804 KG (1772 LB).This eliminates the need for additional equipment such as an air cylinder, lance or high pressure system.

• Complete set of 2 jacks for all types of motorsport use
To make it as easy as possible for fast maintenance and tire changes during drag racing and drifting where frequent tire changes and rear sets are required, we have put together a complete set of 2 Air Jacks with matching accessories. The Air Jack kit includes hoses, tire plugs and air outlets to cover all your needs. This kit contains 2 air jacks, designed to lift only one axle for easy and quick tire changes with 3 and 4 pc air outlets for other configurations.
Air Jack 3pc complete set part #: 590-01-203
Air Jack 4pc Complete Set Part # : 590-01-204

• The set is supplied with jacks, safety support, 5 m (16.4 ft) Hose and Coupling
Nuke Performance 90C Air Jack Kits are designed to be used with 8 BAR ( 120 PSI) workshop air compressors and come complete with an easy to use quick release valve with a common EURO / pneufit coupling that fits most common air compressors.The included bracket allows you to mount it in an easily accessible location to avoid contamination from the weather or track dirt. In the hose kit you get 5m (16.4ft) 8mm quick connect hose for pneufit, 1x quick connect T-Coupling, 2x quick connect 1/4" BSPP barbs for the Air Jack inlets and a petcock ball valve. Ideal for most installations, this kit is easy to install, durable and affordable.

• How much does Nuke Performance Air Jacks lift in a 2-piece installation
Nuke Performance Air Jacks 90 Competition is made to be used with an 8 BAR / 120 PSI air compressor, and thanks to its larger diameter and clever design, it can lift 402 kg (886 lb) at 8 BAR (116) PSI) and 603 kg (1329 lb) at 12 BAR (174 PSI) each. Combined into a set of 2 air jacks, it is suitable when you only want to lift one end for quick installation or tire changing. Perfect for drifting and drag racing.

• Air Jack 90C Safety Props reduce the risk of accidents
The Nuke Performance 90 Competition Air Jack set comes with safety props. When working on or under your vehicle, there is always a risk of accidents. When lifting your vehicle using air jacks, you must always use these air jack locks or traditional jacks to prevent an accident if the pressure drops due to leakage, malfunction or mishandling. The Nuke Performance 90C Safety Props simply clip into place when the airjacket is fully extended, are equipped with an easy-to-use handle and come in a handy carrying case.
Safety Props. Part # : 590-01-202

• Second stage lift capacity with Nuke Performance Elephant Feet gives you a total lift height of 480mm
With Nuke Performance Elephant Feet set up for the Air Jack 90 Competition low pressure air outlet, you can lift your vehicle in a second stage giving you a total height of 480mm (18.9"), perfect for maintenance on the underside of the vehicle or for longer storage in the workshop. Designed with a self-locking mechanism that ensures safe and stable use. For easy storage and transport, add the optional hard case with a Peli foam insert. 201

• How do I mount Air Jacks on my vehicle...
Made of steel and intended to be welded to the body or chassis of your building.If you go with the plate or bracket, we advocate the use of a lower and a higher attachment point to make the installation durable and secure as needed, make it easy by using Nuke Performance mounting accessories.
Steel Plate Part # : 590-10- 109
Steel Bracket Part # : 590-10-108
Steel Tube Part # : 590-10-110

• Download user manual (.pdf)
• Accessories / Spare parts

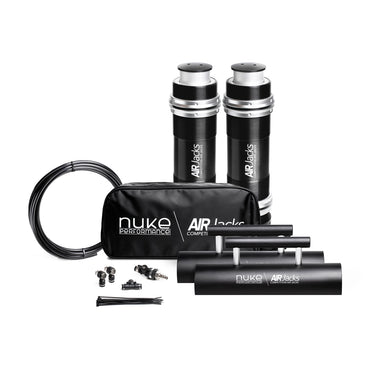

• Air Jack 90 C complete set 2pcs includes:
2 x Air Jack 90 C Air Jacks
2 x Air Jack 90 C safety prop
1 x Safety Prop Carrying case
1 x Quick Connect 8 mm Pneufit T-Coupling
2 x 1/4" barb fittings for Quick Connect 8 mm
1 x Petcock ball valve with EURO pneufit coupling
5m (16.4ft) 8mm Quick Connect pneufit hose
10 x cable ties
