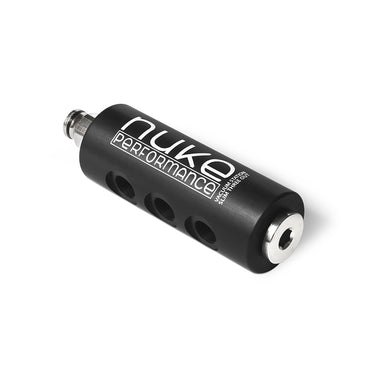

Vacuum Station Slim 3 outlets

Nuke Performance Vacuum Station Slim 3 outlet / Vacuum Manifold is the easiest way to eliminate too many vacuum hoses in the engine compartment.

The slim series Nuke Performance Vacuum Station Slim 3 outlet combines all your parts with the need for a vacuum reading in one line to the manifold. 2 x 1/4" BSPP inlets and 3x 1/8" BSPP outlets give you a versatile selection to choose from.

• Slim and lightweight motorsport design
• 2x 1/4" BSPP inlet ports
• 3x 1/8" BSPP outlet ports
• Allows you to use only one line to your intake manifold
• Clean Your Engine Bay

Connects all your engine parts that need a vacuum reading with a single line/hose to your intake. With the versatile vacuum station from Nuke Performance, cleaning up the engine compartment from additional hoses and pipes has never been easier. Connect a single vacuum line/vacuum hose to the intake and use the 3 ports on the Vacuum Station Slim 3 sockets from Nuke Performance to connect to any part that needs a vacuum reading such as your fuel pressure regulator, blow off valve, wastegate, fuel pulse suppressor and ECU.

• Comes with a 1/4 BSPP quick connect to 6mm vacuum line fitting and a 1/4 BSPP plug, for the five sockets you get to choose from a wide range of Coupling.
Vacuum Station Slim 3 socket from Nuke Performance comes with a 1/4 quick connect to 6mm hard line fitting, the oversized dimension gives you an accurate reading enough to divide for the additional 3 sockets. It also comes with a 1/4 plug for the other end, in total the vacuum station has 5 threaded outlets/inlets, additional 1/4 and 1/8 Couplings are available as accessories and come in a wide variety of versions and sizes.
Main Inlet Port 1/4 BSPP Coupling:
1/4 BSPP barb connection to 4mm hose Part #: 300-10-113
1/4 BSPP barb fitting for 6 mm hose Part #: 300-10-111
1/4 BSPP barb fitting for 8 mm hose Part #: 300-10- 110
1/4 BSPP Pneufit Quick Coupling for 6 mm hose Part #: 300-10-103
1/4 BSPP Pneufit Banjo Quick Connect to 6mm Hose Part #: 300-10-119
1/4 BSPP Pneufit Banjo Quick Connect to 8mm Hose Part #: 590-10-104
1/4 BSPP Plug Part #: 700-01-106

Outlet Port 1/8 BSPP Connector:
1/8 BSPP Pneufit Quick Connect to 4mm Hose Part #: 300-10-120
1/8 BSPP Pneufit Quick Connect to 6mm Hose Part #: 300-10-101
1/8 BSPP Plug Part #: 700-01-107

• The vacuum station is also available in an extruded version with 5 outlet ports and integrated brackets.
Nuke Performance offers the Slim range with 3, 4 or 5 outlet ports. The classic Nuke Performance vacuum station with integrated brackets and 5 outlet threads is also available for a neat installation.

• Vacuum Station Slim 3 outlet specifications:
For more information on specifications, please contact us directly.

* Dimensions including included fittings

• Nuke Performance Vacuum Station Slim 3 socket includes:
1 x Vacuum Station Manifold
1 x 1/4 BSPP Quick Connect to 6mm Line
1 x 1/4 BSPP Connector

• Download Product Sheet (.pdf)
• Accessories/Spare Parts
