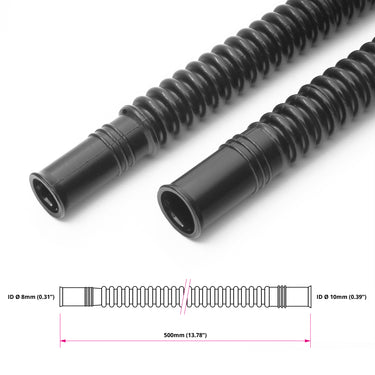

Looped black nylon in tank fuel hose Ø8/10mm 500mm
In-tank convoluted black nylon fuel hose, the inner diameter of 8mm at one end and 10mm at the other end. Designed to be used with the Nuke Performance fuel upgrade range or with custom installations.
The circular corrugation gives you a very flexible yet robust fuel line that fits in tight spaces. The nylon hose has high mechanical strength but still minimal wall thickness. Safe for all types of fuel, including alcoholic fuels such as ethanol and methanol. Our specially designed fuel hose has an ID of 8mm on one end and 10mm on the other end.
SAE quick couplers are available in a variety of varieties and are manufactured from PA12 and are set to SAE J2044 standards. Equipped with Viton O-Ring seals, which are safe for all types of fuel, including alcoholic fuels such as ethanol and methanol. Operating pressure range -40°C up to +115°C.
The fuel hoses in the tank are available in lengths of 350 mm and 500 mm and are used together with barbs, fuel pumps or SAE-Coupling.
Used together with a stainless steel hose clamp 10.3-12.8 mm (part number: 150-20-304) to connect to fuel pump or coupling optional.
Available pre-assembled setups:
In-Tank 350mm fuel hose: SAE 9.49 90° to ID8 Part # : 150-20-305
In-Tank 350mm Fuel Hose : SAE 9.49 90° to ID10 Part # : 150-20-306
In-Tank 350 mm fuel hose : SAE 9.49 straight to ID8 Part # : 150-20-307
In-Tank 350 mm fuel hose : SAE 9.49 straight to ID10 Part # : 150-20-308
In-Tank 350 mm fuel hose : SAE 7.89 90° to ID8 Part # : 150-20-309
In-Tank 350mm Fuel Hose : SAE 7.89 90° to ID10 Part # : 150-20-310
Use with SAE Fitting:
1/4 BSPP to SAE 9.49 Fitting Part # : 300-10-115
SAE J2044 Ø9.49 to ID8 Straight Part #: 150-20-202
SAE J2044 Ø9.49 to ID8 90° Part # : 150-20-203
SAE J2044 Ø9.49 to ID10 Straight Part # : 150-20-204
SAE J2044 Ø9.49 to ID10 90° Part # : 150-20-205
SAE J2044 Ø9.49 to Ø9.49 / Ø7.89 3-Way Coupling Part # : 150-20-206
SAE J2044 Ø7.89 ID8; Part # : 150-20-207
SAE J2044 Ø7.89 ID10 90° Part #: 150-20-208
Quantity: 1 pc
