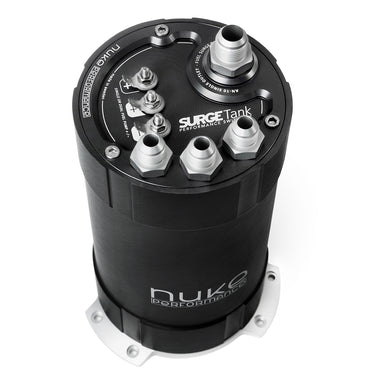

2G Fuel Surge Tank 3.0 liter for Ti Automotive (Walbro) GST 450/520
Second generation Fuel Surge Tanks from Nuke Performance, with everything you need to fit the popular Ti Automotive GST400 / GST450 / GST520 high pressure fuel pumps.
This new updated version is the first of its kind specially developed and designed to fit a single or twin set of Ti Automotive / Walbro GST400, GST450 and GST520, Walbro the motorsport fuel pumps that outperform all current fuel in tank pumps in their price range.
• An extremely lightweight motorsport surge tank
• Fits a single or dual high pressure fuel pump
• Combined to a single AN-10 ORB socket
• 3.0 liter surge tank capacity
• Made in Sweden
• 100% safe for all types of fuel, including E85
• Now with ORB threads, for a wider range of Coupling
Nuke Performance 2G Fuel Surge Tank 3.0 liter for Ti Automotive (Walbro) GST 450 / 520 allows you to combine two internal fuel pumps to an AN-10 socket. This Fuel Surge Tank can deliver a steady flow of fuel even over 2000hp. This setup is all you need to combine into a space-efficient and energy-efficient solution and design.
• Choose between a single or dual internal fuel pump setup. Fits the most common 39mm fuel pumps, mounted in the surge tank in a bracket.
Run one or two fuel pumps individually with multiple electrical connectors on the top cover. Designed and manufactured to handle extreme amounts of power with the same characteristics as all Nuke Performance products.
SAE Fuel Pump Mounting Kits Part #: Available here
• Single or dual internal fuel pumps are mounted with the aluminum internal mounting bracket for a safe and durable installation.
This Fuel Surge Tank comes with an internal bracket for GST400, GST450 and GST520 Walbro fuel pumps and also fits all standard 39mm fuel pumps with a perfect fit, fuel pumps such as DW200, DW300, AEM 340L, Aeromotive 340 and many more.
• Fits 1-2 Walbro GST400 / GST500 series fuel pumps
• Fits 1-2 x most common 39mm The OD fuel pumps
• Safe and secure installation with the aluminum bracket
Without necessary modifications it is also possible to fit the larger Bosch BR540 and Deatschwerks DW400 in the same surge tank. This single outlet surge tank is the perfect solution and design for almost all fuel pumps used for tuning and motorsport applications on the market today. Installing the fuel pumps into the surge tank is easy and ensures a safe and secure installation for long-term use.
• The external surge tank allows you to use high pressure fuel pumps without any major customization of the OEM fuel tank.
With our Fuel Surge Tank you minimize the risk when running on low fuel that the system will not be able to cope with extremely hard driving such as drifting, drag racing and track days where you can exceed 2g, which can result in fuel loss. With this setup you can rely on maximum fuel delivery, a safe solution for your engine even when conditions are as demanding as they get. Being able to fit high flow fuel pumps in the tank without major adaptation of your stock fuel tank is almost as important, this is really the only installation you need.
2G Fuel Surge Tank 3.0 liter for Ti Automotive (Walbro) GST 450 / 520 acts as a buffer so the fuel pumps are always supplied with fuel for high output as the return line from your engine leads straight back into the fuel pump, it stays full throughout the time.
• How to Install Fuel Pumps in Walbro GST Fuel Surge Tank
Your stock fuel pump or your surge fuel pump in your stock fuel tank or your aftermarket fuel cell acts like a pickup fuel pump ensuring that the high pressure fuel pumps in the oversized 3 liter surge tank always have enough fuel to maximize fuel flow and minimize the risk of starvation which can seriously damage your engine. The fuel surge tank comes with everything you need to install the fuel pumps of your choice, but we recommend adding one of our fuel pump mounting kits for optimal functionality. All fuel pumps are securely mounted in all conditions thanks to the billet fuel pump mounts.
• Fuel Pump Mounting Kits : Read more about our SAE Mounting Kits
• Additional Fuel Pumps : Explore Our Fuel Pump Selection
• Nuke Performance Fuel Pumps are available in a variety of kits to meet all your needs .
Nuke Performance 2nd Generation Fuel Surge Tanks are available in several different sets, each designed for maximum performance. It comes with an aluminum mounting bracket with a six-bolt pattern that makes for a secure fit in any installation. Depending on the setup you choose, they come with a varied number of electrical connections, but regardless of model, it is always equipped with our oversized electrical connectors that handle x10 the current used. The Walbro / Ti Automotive GST version is equipped with dual stage connectors, allowing you to choose whether to run the different fuel pumps on different stages, fuses or simultaneously.
• Our wide range of accessories and mounting options will suit all your fuel delivery needs within an aftermarket fuel system.
Nuke Performance 2G Fuel Surge GST Tank 3.0 Liter for Ti Automotive (Walbro) 450 / 520, is equipped with ORB threaded inlet and outlet ports. The AN-10 ORB outlet port and the AN-8 ORB inlet, return and overflow ports allow you to choose from a wide variety of different ORB Couplings available. The use of the oversized, high-flow outlet AN-10 ORB combines the internal fuel pumps into a single fuel line and minimizes the need for external equipment, hoses and couplings. Outlet, inlet, overflow and return Coupling AN-6, AN-8, AN-10 and AN-12 are sold separately as accessories.
• Outlet Coupling :
AN-10 ORB to AN-6 Male Part # : 700-04-108
AN-10 ORB to AN-8 Male Part # : 700-04-109
AN-10 ORB to AN-10 Male Part # : 700-04-110
AN-10 ORB to AN-12 Male Part # : 700- 04-111
• Inlet/Return/Bridge Fitting :
AN-8 ORB to AN-6 Male Part # : 700-04-104 span>
AN-8 ORB to AN-8 Male Part # : 700-04-105
AN-8 ORB to AN-10 Male Part # : 700-04 -106
AN-8 ORB to AN-12 Male Part # : 700-04-107
Used in all types of motorsports such as drag racing, drifting, GT racing, time attack and more. Designed to withstand the destructive properties of alcohol fuels, including methanol and ethanol.
• Made in Sweden, guaranteeing the highest possible quality.
The second generation Fuel Surge Tanks are developed, designed and manufactured by Nuke Performance for the highest possible quality and with the same characteristics as all other parts in the light motorsport series.
There is no substitute for the quality of Nuke Performance!
• Fuel Surge Tank Specifications
For more information on functionality, see the FAQ guide.
| Del # | 150-01-208 |
| Length | 265 mm (10.43”) |
| FST Diameter | Ø 148 mm (5.82”) |
| Diameter of console | Ø 178 mm (7.00”) |
| Mounting points | 6 x M6 (Ø 6.5 mm / 0.25") |
| Storm tank volume | Approximately 3.0 liters (0.79 gallons) |
| Weight | 2780g (6.12lb) |
| Fits number of high pressure pumps | 1-2 x brushed fuel pump |
| Discharge thread | AN-10 ORB (see range) ** |
| Inlet thread | AN-8 ORB (see range) ** |
| Return thread | AN-8 ORB (see range) ** |
| Return to fuel tank | AN-8 ORB (see range) ** |
| Electrical connector | x3 M6, (max ≈125 amps / each *) |
| Fuel compatibility | Gasoline, methanol, ethanol, E85 |
| For motorsport use | YES |
| EAN | 7340209501278 |
* for reference only
** changed specification 2022
• Walbro GST Fuel Surge Tank Includes:
1 x 3.0 liters fuel surge tank
1 x 6 bolt pattern aluminum mounting bracket
1 x Dual mounting bracket for internal fuel pumps
2 x 39mm fuel pump inserts for Walbro GST fuel pumps
2 x 1/4 BSPP to 8mm Barb (fuel hose) coupling
1 x 1/4 BSPP plug (for use with a fuel pump)
• Accessories/spare parts
• Installation documentation (.pdf)
• FAQ strong> - How does a Fuel Surge Tank work
• Product update 2022:
To to satisfy our customers' requests, our 2G Fuel Surge Tank 3.0 liter for Ti Automotive (Walbro) GST 450 / 520 is now supplied with AN-10 and AN-8 ORB threads. Wide range of fittings and even higher flow. No outlet or return couplings are included with the fuel surge tank, AN-6 to AN-12 couplings are available as accessories.
fuel pumps are included in Fuel Surge Tanks
Nuke Performance fuel surge tanks are supplied without fuel pumps, if required select the preferred fuel pumps from our selection menu or view the fuel pump listings here.
