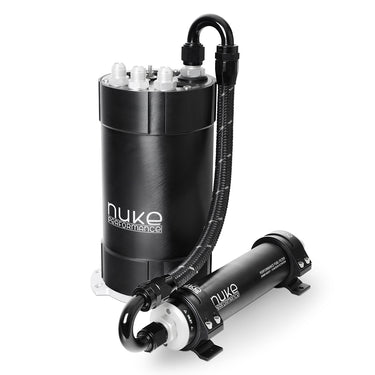

2G Fuel Surge Tank Kit for internal fuel pumps

• Fuel pumps are mounted using the internal billet mounting bracket
This fuel surge tank comes with an internal bracket for all standard 39mm fuel pumps mounts with a perfect fit, it also fits the larger diameter fuel pumps such as Bosch BR540 and Deatschwerks DW400 making this kit suitable for all possible needs between 200 up to 2500 horsepower.

• High-flow fuel pumps without heavy adaptation of the fuel tank
With our Fuel Surge Tank, you minimize the risk when driving on a low fuel level, that the system cannot cope with extremely hard driving such as drifting, drag racing and track days where you can exceed 2g, which can result in fuel loss. With this setup you can count on maximum fuel delivery, a safe solution for your engine and installation even when conditions are as demanding as they get. Being able to mount high flow fuel pumps in the tank without extensive customization of your stock fuel tank is almost as important, this is really the only setup you need.

Fuel Surge Tank acts as a buffer so the fuel pumps are always fueled for high output as the return line from your engine runs straight back into the FST, it stays full all the time.

• How to mount fuel pumps in Nuke Fuel Surge Tank
Your stock fuel pump or surge fuel pump in your stock fuel tank or aftermarket fuel cell acts as a pickup fuel pump ensuring that the high pressure fuel pumps in the oversized 3 liter surge tank always have enough fuel to maximize fuel flow and minimize the risk of starvation which can seriously damage your engine. The Fuel Surge Tank Kit comes with everything you need to install the fuel pumps of your choice, but we recommend adding one of our fuel pump mounting kits for optimal functionality. All fuel pumps are securely mounted in all conditions thanks to the billet fuel pump mounts.
• Fuel Pump Mounting Kits : Read more about our SAE Mounting Kits
• Additional Fuel Pumps : Explore Our Fuel Pump Selection

• 10 Micron Stainless Steel Fuel Filter with Welded End Caps
What's Included The Nuke Performance high flow fuel filter uses a unique 200mm 10 micron stainless steel filter element that is made from 100% stainless steel with unique welded end caps that eliminate the common glue that can dissolve when switching from gasoline to ethanol or when running aggressive fuels such as race fuel. When you run the oversized fuel filter from Nuke Performance, you'll never have to worry about failing filter elements again. For more information on the 200mm fuel filter, please visit the product page.
Performance Fuel Filter Part # : 200-03-201

• Available in different setups to meet all your needs
Our fuel surge tank comes in several different setups, each designed for maximum performance. It comes with an aluminum mounting bracket with a six-bolt pattern that makes for a secure fit in any installation. Depending on which setup you choose, they come with a varied number of electrical connections, but regardless of model, it is always equipped with our oversized electrical connectors that handle x10 the current used. The Single Outlet version is equipped with dual stage connectors, allowing you to choose whether you want to run the different fuel pumps on different stages, fuses or at the same time.

• The kit comes with an AN-10 fuel line and ready for AN-8 and AN-10 Coupling available in many variations and sizes
Comes with a billet aluminum mounting bracket for easy installation. AN-10 ORB Coupling for the outlet port on the fuel filler tank and the inlet port on the fuel filter is included in the kit. The fuel filter outlet port is AN-10 ORB and the supply, return and overflow ports on the surge tank are AN-8 ORB. Both the AN-8 and AN-10 ORB Coupling are sold as accessories and come in a variety of sizes and variations.
• Fuel Filter Outlet Coupling :
AN-10 ORB to AN-6 Male Part # : 700-04-108
AN-10 ORB to AN-8 Male Part # : 700-04-109
AN-10 ORB to AN-10 Male Part # : 700-04-110
AN-10 ORB to AN-12 Male Part # : 700-04-111

• Supply, return and overflow fitting :
AN-8 ORB to AN-6 male Part # : 700-04-104
AN-8 ORB to AN-8 Male Part # : 700-04-105
AN-8 ORB to AN-10 Male Part # : 700-04-106

• Developed with high motorsport demands
Co-developed with worldwide motorsport teams, this fuel surge tank kit is tuned to perform in all conditions and for all horsepower requirements, used in all types of motorsports such as drag racing, drifting, GT racing, time attack, and more. The 2nd generation fuel surge tank kit was born out of the high demand for a turnkey solution with the best parts available. Designed to withstand the destructive properties of alcohol fuels, including methanol and ethanol.

• Made in Sweden, guaranteeing the highest possible quality
