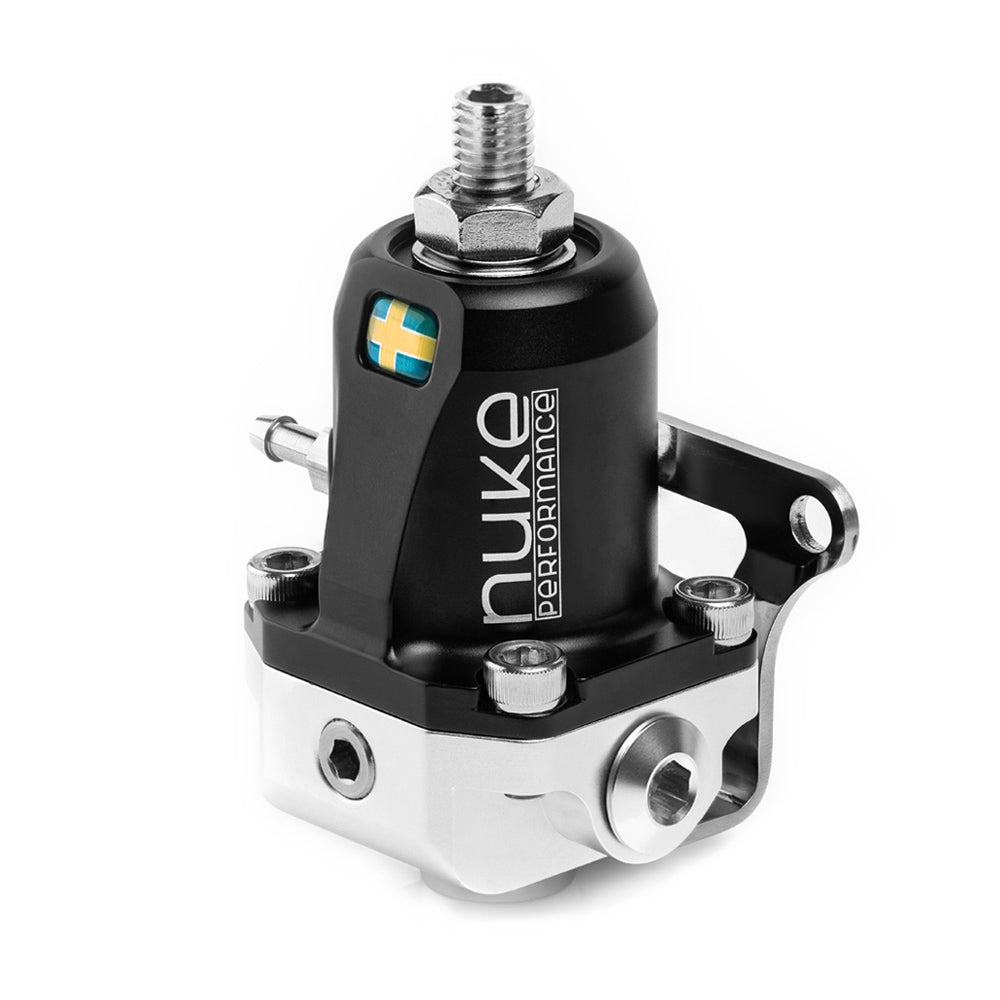

Fuel Pressure Regulator FPR100s AN-6
Nuke Performance FPR100s Fuel Pressure Regulator: Redefines motorsport fuel management efficiency.
Lightweight design, ethanol safe fuel pressure regulator with slim design and easy-to-mount stainless steel brackets. Each unit is thoroughly tested before delivery, with unmatched functionality and the same high quality as always.
• Lightweight motorsport fuel pressure regulator
• Safe for all types of fuel including methanol and ethanol
• Each unit performance tested before delivery
• Fully adjustable up to 100 PSI (7 bar)
• 1:1 boost reference
• Stainless steel mounting bracket
• AN-6 ORB inlet/outlet
The most reliable 1:1 boost reference solution for bringing together simple or complex fuel systems for any type of tuning or motorsport engine installation. Redesigned with precision functionality in focus. Lightweight design with the same hallmarks of the entire Nuke Performance range of motorsport parts, with an integrated stainless steel bracket for safe and easy mounting for all applications and installations.
• Developed to the high demands of motorsport
The FPR100's fuel pressure regulator is developed in conjunction with worldwide motorsport teams and fuel pump manufacturers. This fuel pressure regulator is set to work in all conditions, with all horsepower requirements. It is designed and tested for use with up to 700 HP and is fully adjustable between 30 PSI and 100 PSI (2-7 bar).
• 1:1 boost reference and high flow design with minimal flow loss
Fuel pressure rises at a 1:1 ratio when referencing boost with precision pressure adjustment. Fuel pressure is set using the adjusting screw on the top with its hardened steel ball which enables a precise and well-tuned fuel pressure setting, ≈0.14 BAR (≈2 PSI)/rev. Its dual intake design allows you to choose between a left or right intake or a dual intake for a V engine. The 1/8" NPT thread faces forward for easy-to-read fuel pressure gauge and fuel pressure sensor installation.
• 1:1 boost reference
• 600 LPH free flow rating
• AN-6 ORB inlet and outlet
• Lightweight motorsport design
With the dual inlet AN-6 ORB design, you can choose between left or right inlet, or a dual inlet for a V engine installation And with the easy-to-access 1/8" NPT thread facing forward, it's easy to attach your fuel pressure gauge or sensor for easy pressure readings. p>
• Choose from an AN-6, AN-8, and AN-10 fuel pressure regulator, exceeding all your fuel needs imaginable
The new fuel pressure regulators in The FPR100 range is available in AN-6, AN-8 and AN-10, and all are fully customized for your motorsport needs. All three have an extremely thin and light design with the latest technology and functionality.
• FPR100s AN-6 : 200 - 700 horsepower
• FPR100m AN-8 : 500 - 1200 horsepower
• FPR100x AN-10 : 700 - 2000 + horsepower
The choice of three different sizes of fuel pressure regulators in the FPR100 series allows you to choose the optimal function for your installation. Combined with the different couplings for both inlet and outlet ports between the AN-6 and AN-12, these FPRs give you a range from 200 all the way up to 2400 horsepower.
The FPR100s have AN-6 ORB inlet ports and AN-6 ORB outlet ports and are designed for settings between 200 - 700 horsepower, making it the lightest and most space-efficient regulator in the FPR100 series from Nuke Performance.
• Easy to install with a stainless steel bracket and safe for all types of fuel, including alcoholic fuels like ethanol
All FPR100 series fuel pressure regulators come with a sturdy stainless steel bracket that makes them extremely easy to attach all engine compartments and secures the FPR even under extreme conditions to prevent malfunctions. And like all Nuke Performance motorsport products, the FPR100 fuel pressure regulator is engineered, designed and manufactured with its stainless steel hardware and anodized internals to handle all fuels, including gasoline, ethanol and methanol.
• Safe for all types of fuel, including ethanol
• Fiber reinforced nitrile 46mm diaphragm
The fiber reinforced 46mm nitrile diaphragm of The FPR1002 is of the highest possible quality and is approved for all types of fuel, including gasoline (petrol), and alcoholic fuels such as ethanol, E85, E100 and methanol.
• Choose the right coupling for your FPR100s fuel pressure regulator
A 5mm vacuum barb coupling is included, while 6mm pneufit quick coupling is available as an accessory. The FPR100s use AN-6 ORB threads to fit the most common choices of fittings. It comes with an AN-6 ORB connector that can be easily removed for dual inlet applications. It fits the most common AN-6 Couplings, with fittings sold separately.
AN6 ORB - AN6 Male Part #: 700-04-101
span>AN6 ORB - AN8 Male Part #: 700-04-102
AN6 ORB - AN10 Male Part #: 700-04-103
AN6 ORB - AN6 Female Part #: 700-04-119
1/16 NPT to Pneufit 6mm Part # : 300-10-116
• Each FPR100's regulator is thoroughly tested before shipping
To maximize quality and functionality of the FPR100 series, including the FPR100s AN-6, FPR100m AN-8 and FPR100x AN-10, every single fuel pressure regulator is tested prior to shipment. Our test facility features. world-leading test equipment that can detect even the smallest possible characteristics that can negatively affect function. There is no shortcut in manufacturing that leads to the excellent performance and functionality of the Nuke Performance FPR100 Fuel Pressure Regulator.
• Engineered to high standards. from worldwide motorsport
Fel Pressure Regulator FPR100's AN-6, designed in Sweden, has been developed and designed together with worldwide motorsport teams. Nuke Performance fuel pressure regulators have never stopped evolving. Always ready to give you maximum function, and with extremely high quality, they perform even under extreme and demanding conditions. The FPR100 series fuel pressure regulators are manufactured to the same specifications as all other parts in the lightweight Nuke Performance motorsport range.
• Nuke Performance optional fuel pressure gauge, 0-100 PSI (7 bar)
To get the ultimate and full experience of your brand new Nuke Performance FPR100s fuel pressure regulator, you should complement it with our accurate and stylish fuel pressure gauges that fit right into the 1/8" NPT threaded outlet on the front of our regulator.
Fuel Pressure Gauge Part #: 310-01-101
• Fuel Pressure Regulator FPR100s AN-6 Specifications
For more information on specifications, please contact us directly.
| Pressure range | 2 - 7 BAR (30 - 100 PSI) |
| Boost reference | 1:1 |
| Horsepower | 200 - 700 HP |
| Free Fuel Flow Rating | 600 LPH |
| Fuel Compatibility | Gasoline, Gasoline, Methanol, Ethanol |
| Inlet Thread | Dual AN-6 ORB, Viewing Area |
| Outlet Thread | Single AN-6 ORB, view range |
| Gauge port | 1/8 NPT |
| Vacuum reference port | 1/16 NPT |
| Diaphragm | 46 mm fiber reinforced nitrile diaphragm |
| Height | 93-105 mm (3.66-4.13”)* |
| Width | 53 mm (2.08&rdquo) ;) |
| Depth | 46 mm (1.81”) |
| Weight | 352g (12.42oz) |
| Ball bearing adjustment | ≈0.14 BAR (≈2 PSI)/rev |
* depending on set pressure
• Nuke Performance Fuel Pressure Regulator FPR100s AN-6 Includes:
1 x 6AN ORB Plug for the Auxiliary Inlet
1 x 1/8 NPT Plug for Gauge/Sensor Port
1 x 1/16 NPT Spout for 5mm Vacuum Hose
1 x Stainless Steel Mounting Bracket
2 x Stainless Steel Bolts for mounting bracket
• Download product sheet (. pdf)
• Accessories / Spare parts
