Fuel line gauge Adapter AN-8 ORB to M10x1

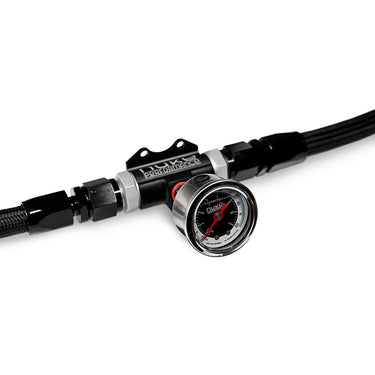

Place our fuel pressure gauge or fuel pressure/temperature sensor anywhere along the fuel line, fits any gauge with 1/8 NPT or M10x1.5 thread. The Nuke Performance Fuel Pressure Gauge Adapter allows you to place the gauge anywhere along the fuel line.
This unique gauge adapter allows you to place any fuel pressure gauge, fuel temperature or fuel pressure sensor anywhere along the AN fuel line. Easy access to check your fuel pressure has never been easier.
In its new updated version, it uses AN-8 ORB threads on both ends which allows a wide range of Coupling adapt this gauge and sensor adapter to your fuel, oil and cooling system. The AN-8 ORB Couplings are sold as accessories and come in a wide variety of variations.
AN-8 ORB to AN-6 Male Part #: 700-04-104
AN-8 ORB to AN-8 Male Part # : 700-04-105
AN-8 ORB to AN-10 Male Part # : 700-04 -106
AN-8 ORB to 8mm barb Part # : 700-04-123
AN-8 ORB to SAE J2044 Ø7.89 (5/16") male Part # : 150-20-422
AN-8 ORB to SAE J2044 Ø9.49 (3/8") Male Part # : 150-20-425
The 1/8 NPT version can be used with the popular Nuke Performance 0-100 PSI and 0-7 BAR fuel pressure gauge, or one of our pressure sensors. span>
0-100 PSI / 0-7 BAR Fuel Pressure Gauge Part # : 310-01-101
10 BAR (150PSI) fuel/oil pressure sensor, with connector Part # : 70-1018
10 BAR (150PSI) fuel/oil pressure sensor, with 1m cable (3ft) Part # : 70-1018C
The M10x1 version can be used with the Bosch pressure and temperature sensor which is a very high quality part that suits most needs and applications.
10 BAR (150PSI) Bosch Pressure/Temperature Sensor Part #: 70-0261230340
This is a new 2024 version that uses AN -8 ORB ports and comes without fittings, now at an even lower price than before. Available in two different sizes, select version when ordering.
Width : 50mm (1.96")
Depth : 35mm (1.38")
Height : 30mm (1.18")
Weight : 80g (2.82oz)
