Audi 5cyl 20V ABY / 3B fuel pipe
Nuke Performance fuel lines for Audi 5cyl 20V S2 and RS2 engines with ABY or 3B intakes, oversized internals, lightweight design and fitted with our unique injector safety clips.

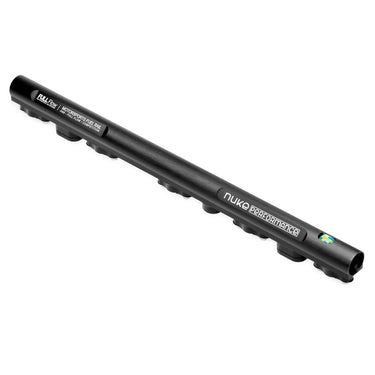

• Lightweight fuel rail to suit Audi 5cyl 20V ABY / 3B engines
• For use with Bosch EV14 stock injectors
• AN-8 ORB threads on both ends allow high fuel flow
• Comes with brackets for easy mounting on the ABY / 3B intakes
• AN-6 ORB side outlet/inlet for optional applications
• Safe for all types of fuels, including alcoholic fuels such as E85
Nuke Performance's latest generation of fuel rails provide an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that Nuke Performance fuel rails have become known for, providing a leak-proof seal even during a crash where the fuel rail would tear out of the intake manifold.
• Perfect fit for an Audi 5cyl 20V ABY / 3B engine from the S2 and RS2, supplied with the necessary hardware to fit onto intake.
Nuke Performance Audi 5cyl ABY / 3B fuel rail comes with mounts for the 5cyl ABY and 5cyl 3B engines. We also offer a fuel rail for the Audi 5cyl AAN intake (available here).
• Audi S2 3B 1990-1992
• Audi S2 ABY 1992-1996
• Audi RS2 ABY 1992-1996
• Audi RS2 ADU 1994-1996
• Wagner Tuning Audi S2/RS2/S4/200 intake
Please note that when installing the fuel rail to the ABY, 3B or ADU intakes, the supplied brackets must be fitted to the intake first, once the brackets are installed the fuel rail is attached to the brackets. This fuel rail also works with the popular aftermarket intake from Wagner Tuning.
Please be aware that this fuel rail is incompatible with the AAN engines, these engines require different hardware (available here).
• AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters to choose from between.
The fuel rail uses AN-8 ORB threaded fittings for each end and also offers an additional side port with AN-6 ORB thread. We offer a wide range of fittings and our low profile full flow banjo fittings for a space efficient installation.
AN -8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : strong> 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB Plug Part # : 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129 span>
• All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
A hallmark of Nuke Performance is the use of Injector Safety Clips, designed to maintain a flawless seal for injectors even under the load of extreme fuel pressure.
• Designed, and developed in Sweden, ensuring the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Audi 5cyl ABY / 3B fuel rail is of the highest possible quality and has the same characteristics as all other lightweight motorsport products from Nuke Performance. Co-developed with worldwide motorsport teams, Nuke Performance parts ensure that functionality, as well as design, meet the absolute highest standards, or even make their own.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.
There is no substitute for the quality of Nuke Performance. strong>
• Nuke Performance Audi 5cyl ABY / 3B fuel rail Specifications:
For more information on specifications, see product sheet.
| Supplied with brackets for | 5cyl 20V S2 3B 1990-19925cyl 20V S2 ABY 1992-19965cyl 20V RS2 ABY 1992-19965cyl 20V RS2 ADU 1994-1996Wagner 160001001 Intake Specific | Bosch EV14 Standard Style |
| Inlet/Outlet End Thread | AN-8 ORB (see assortment) * | |
| Extra port thread | AN-6 ORB (see assortment) * | |
| Length | 397.00 mm (15.63") | |
| Height | 32.00 mm (1.25") | |
| Weight | 330.00 g (11.64 oz) | |
| Fuel Compatibility | Gasoline, Petrol, Ethanol, E85, E100, Methanol | |
| For motorsport use | YES | |
| Replaces old part # | 100-03-202 ** | |
| Part # | 120-01-101 | |
| EAN | 7340209506129 | |
* not included, be sure to select the necessary fittings when placing an order
** old generation that did not include brackets for the ABY / 3B engine
• Nuke Performance Audi 5cyl ABY / 3B fuel rail includes:
1 x AN-8 ORB Full Flow fuel rail profile for Audi 5cyl ABY / 3B
2 x Aluminum Brackets for Audi 5cyl ABY / 3B
1 x AN-6 ORB Plug
5 x Nuke Performance Injector Safety Clips
10 x MC6S M4x6mm Stainless Steel Bolts
4 x K6S M6x10mm Stainless Steel Bolts
2 x MF6S M6x16mm Stainless Steel Bolts
• Download product sheet (.pdf)
• Accessories / Spare parts
• This fuel rail replaces our old Audi 5cyl version with article number 100-03-202 which is no longer available for purchase.
• The fuel rail is delivered without fittings and injectors, these must be purchased as accessories.
