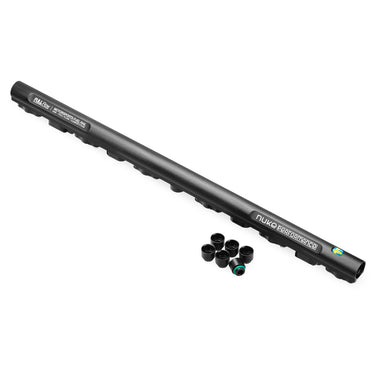

BMW 6cyl M20 fuel pipe
Nuke Performance fuel rail for the BMW 6cyl M20 engine, oversized internals, lightweight design and equipped with our unique injector safety clips.
BMW 6cyl M20 fuel rail comes with mounts for the M20 engine and allows you to go with AN fuel lines and aftermarket injectors to your classic BMW engine.
• Lightweight fuel rail to suit BMW 6cyl M20 engines
• For use with Bosch EV14L type injectors
• AN-8 ORB threads on both ends allow for high fuel flow
• Supplied with brackets for easy mounting to BMW M20 intake
• AN-6 ORB side outlet/inlet for optional applications
• Safe for all types of fuel, including alcoholic fuels such as E85 span>
Nuke Performance's latest generation of fuel rails provide an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that Nuke Performance fuel rails have become known for, providing a leak-proof seal even during a crash where the fuel rail would tear out of the intake manifold.
• Perfect fit for a BMW 6cyl M20 engine, supplied with the necessary hardware to mount to the intake.
Nuke Performance BMW 6cyl M20 fuel pipe comes with brackets and bottom injector spacers for the 6cyl BMW M20 engine.
• BMW M20B20 1977-1992
• BMW M20B23 1977-1987
• BMW M20B25 1985-1992
• BMW M20B27 1982-1988
Supplied with spreader bottom spacers fitted with Viton O-rings to fit Bosch EV14L style injectors to the M20 intake. Please note this fuel rail is only compatible with BMW M20 engines, we offer a wide range of fuel rails for BMW straight six engines such as the M20, M50, M54 and S50 (available here).
• AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters for select between.
The fuel rail uses AN-8 ORB threaded fittings for each end and also offers an additional side port with AN-6 ORB thread. We offer a wide range of fittings and our low profile full flow banjo fittings for a space efficient installation.
AN -8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : strong> 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB Plug Part # : 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129 span>
• All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
A hallmark of Nuke Performance is the use of Injector Safety Clips, designed to maintain a flawless seal for injectors even under the load of extreme fuel pressure.
• Designed, and developed in Sweden, ensuring the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The BMW 6cyl M20 fuel rail is of the highest possible quality and has the same signature as all other lightweight motorsport products from Nuke Performance. Developed with worldwide motorsport teams and BMW experts, Nuke Performance parts ensure that functionality, as well as design, meet the absolute highest standards, or even set a standard of their own.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.
There is no substitute for the quality of Nuke Performance.
• Nuke Performance BMW 6cyl M20 fuel rail Specifications:
For more information on specifications, see product sheet.
| Supplied with brackets for | 6cyl M20 1977-1992 |
| Injector Type Specification | Bosch EV14 L style |
| Close inlet/outlet threads | AN-8 ORB (see range) * |
| Extra port thread | AN-6 ORB (see range) * |
| Length | 500.00 mm (19.68") |
| Height | 32.00 mm (1.25") |
| Weight | 418.00 g (14.74 oz) |
| Fuel Compatibility | Gasoline, Gasoline, Ethanol, E85, E100, Methanol |
| For Motorsport Use | YES |
| Replaces Old Part # | 100-02-2020 ** |
| Part # | 120-02-101 |
| EAN | 7340209506761 |
* not included, be sure to select the necessary accessories when placing an order
** old generation that did not include mounts for The M20 Engine
• Nuke Performance BMW 6cyl M20 Fuel Rail Includes:
1 x AN-8 ORB Full Flow Fuel Rail Profile for BMW 6cyl M20 Engine
2 x 2pc Aluminum Brackets for BMW M20 Engine
6 x Injector Bottom Spacers, 8mm with 8x3mm Viton O-Rings
1 x AN-6 ORB Plug
6 x Nuke Performance Injector Safety Clips
12 x MC6S M4x6mm Stainless Steel Bolts
4 x MF6S M6x10mm Stainless Steel Bolts
2 x K6S M6x30mm Stainless Steel Bolts
• Download Product Sheet (.pdf)
• Accessories / Spare parts
• This fuel rail replaces our old universal BMW 6cyl 6x91 M20, M50, and S50 versions with part number 100-02-202, which is no longer available for purchase.
• The fuel rail is supplied without fittings and injectors, these must be purchased as accessories.
