Mini 4cyl R53 FMIC fuel rail
Nuke Performance fuel pipe for the Mini R53 FMIC engine, oversized internals, lightweight design and fitted with our unique injection protection clamps.
Mini 4cyl R53 FMIC fuel pipe comes with brackets for the R53 FMIC intake and allows you to go with AN fuel lines and aftermarket injectors to your Mini.
• Lightweight fuel pipe to suit Mini R53 FMIC engines
• Used with Bosch EV14S type injectors *
• AN-8 ORB threads on both ends allow high fuel flow
• Comes with brackets for easy mounting on the FMIC intake
• AN-6 ORB side outlet/inlet for optional applications
• Safe for all types of fuel, including alcoholic fuels such as E85
• Supplied with required top injector adapters, with filters

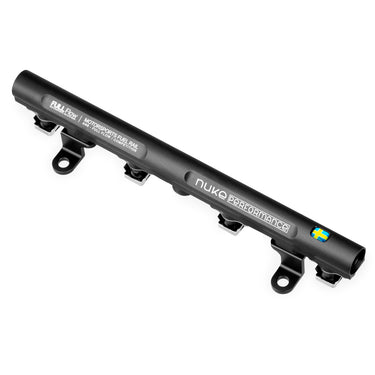

* This fuel rail is made to be used with EV14S (Standard) 53mm injectors, but top adapters with injector filters are required, these included in the fuel rail shown in the product images.
Nuke Performance's latest generation of fuel rails provide an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that Nuke Performance fuel rails have become known for, providing a leak-proof seal even during a crash where the fuel rail would tear out of the intake manifold.
• Perfect fit for a Mini R53 FMIC intake, supplied with the necessary hardware to mount to the intake.
Nuke Performance Mini 4cyl R53 The FMIC fuel rail comes with mounts for the R53 FMIC engine. The fuel rail is equipped with brackets that fit the following models and years:
• R53 FMIC *
* Please note that this fuel rail is incompatible with the TMIC model. We currently do not offer a fuel rail solution for the TMIC version.
• AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters to choose from.
The fuel rail uses AN-8 ORB threaded fittings for each end and also offers an additional side port with AN-6 ORB thread. We offer a wide range of fittings and our low profile full flow banjo fittings for a space efficient installation.
AN -8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : strong> 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB Plug Part # : 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129 span>
• All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
A hallmark of Nuke Performance is the use of Injector Safety Clips, designed to maintain a flawless seal for injectors even under the load of extreme fuel pressure.
• Designed, and developed in Sweden, ensuring the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Mini 4cyl R53 FMIC fuel rail is of the highest quality possible and has the same characteristics as all other lightweight motorsport products from Nuke Performance. Co-developed with worldwide motorsport teams, Nuke Performance parts ensure that functionality, as well as design, meet the absolute highest standards, or even make their own.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.
There is no substitute for the quality of Nuke Performance. strong>
• Nuke Performance Mini 4cyl R53 FMIC fuel rail Specifications:
For more information on specifications, see product sheet. span>
| Supplied with brackets for | R53 FMIC |
| Injector type specification | Bosch EV14 S-Style * |
| End Inlet/Outlet Threads | AN-8 ORB (see range) ** |
| Additional port wire | AN-6 ORB (see range) ** |
| Length | 301.50mm (11.87") |
| Height | 32.00 mm (1.25") |
| Weight | 291.00 g (10.26 oz) |
| Fuel Compatibility td> | Gasoline, Petrol, Ethanol, E85, E100, Methanol |
| For motorsport use | YES |
| Replaces old part # | 100-02-209 *** |
| Part # | 120-07 -101 |
| EAN | 7340209500813 |
* because top injector adapters are needed on this fuel rail, they are included in the fuel rail
** not included, be sure to select the necessary Couplings when placing an order
*** old generation used NPT threads and had a smaller hole than the new generation
• Nuke Performance Mini 4cyl R53 FMIC fuel pipe includes:
1 x AN -8 ORB Full Flow fuel rail profile for Mini R53 FMIC
2 x aluminum brackets for Mini R53 FMIC
4 x Injector adapters short, with filter
4 x Bosch injector clamp
1 x AN-6 ORB Plug
4 x Nuke Performance Injector safety clamps
8 x MC6S M4x6mm stainless steel bolts
4 x K6S M6x10mm stainless steel bolts
2 x MC6S M8x20mm stainless steel bolts
