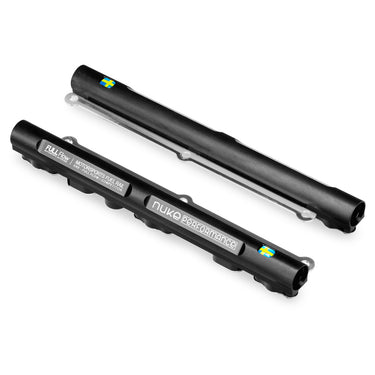

Porsche 6cyl 964/993 fuel pipe

Nuke Performance fuel rail for Porsche 964 / 993, oversized internals, lightweight design and equipped with our unique injector safety clips.

Porsche 964/ 993 fuel rail comes with brackets for 964/993 intake and allows you to go with AN fuel lines and aftermarket injectors for your classic Porsche models.

• Lightweight fuel pipe to suit Porsche 964/993 engines
• Used with Bosch EV14L type injectors
• AN-8 ORB threads on both ends allow high fuel flow
• Comes with brackets for easy mounting on Porsche intakes span>
• AN-6 ORB side outlet/inlet for optional applications
• Safe for all types of fuel, including alcoholic fuels such as E85

Nuke Performance's latest generation fuel rails provide an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that Nuke Performance fuel rails have become known for, providing a leak-proof seal even during a crash where the fuel rail would tear out of the intake manifold.

• Perfect fit for a Porsche 964 / 993 intake, supplied with the necessary hardware to mount to the intake.
Nuke Performance Porsche 6cyl 964/ 993 fuel rail comes with brackets for the 964/993 engines. The fuel rail is equipped with brackets that fit the following models and years:
• Porsche 964 3.3 L 1989 - 1994
• Porsche 964 3.6 L 1989 - 1994
• Porsche 993 3.6 L 1994 - 1998

This fuel rail replaces our old 3/8 NPT version for the same engine with part number 100-12-201. We also offer fuel rails for other Porsche engines (available here).

• AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters to choose from.
The fuel rail uses AN-8 ORB threaded fittings for each end and also offers an additional side port with AN-6 ORB thread. We offer a wide range of fittings and our low profile full flow banjo fittings for a space efficient installation.

ORB to AN-8 Male Part # : 700-04-105
AN -8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : strong> 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB Plug Part # : 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129 span>

• All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
A hallmark of Nuke Performance is the use of Injector Safety Clips, designed to maintain a flawless seal for injectors even under the load of extreme fuel pressure.

This design prevents fuel spillage, even in scenarios where the fuel pump continues to run or there is residual pressure in the fuel system.

• Designed, and developed in Sweden, ensuring the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Porsche 6cyl 964/993 fuel rail is of the highest possible quality and has the same signature as all other lightweight motorsport products from Nuke Performance. Co-developed with worldwide motorsport teams, Nuke Performance parts ensure that functionality, as well as design, meet the absolute highest standards, or even set a new standard.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.

There is no substitute for the quality of Nuke Performance.

• Nuke Performance Porsche 6cyl 964/993 fuel rail Specifications:
For more information on specifications, see product sheet.

<<<<<<<<<

Supplied with brackets for	964 1989 - 1994993 1994 - 1998. *
Length (Each)	280.00mm (11.02") **
Height (Each)	32.00mm (1.25") **
Weight (Each)	312.00g (11.01oz ) **
Fuel Compatibility	Gasoline, Gasoline, Ethanol, E85, E100, Methanol
For Motorsport Use	YES
Replaces Old Part #	100-12-201 ***
Part #	120-05-102
EAN	7340209507188

* not included, be sure to select the necessary fittings when placing an order
** all measurements are for one of the two included fuel rails
*** old generation with smaller internals and NPT ports

• Nuke Performance Porsche 6cyl 964/993 fuel rail includes:
2 x AN-8 ORB Full Flow fuel profile for Porsche 964/993
2 x Stainless steel brackets for Porsche 964/993
2 x AN-6 ORB plug
6 x Nuke Performance Injector Safety Clamps
12 x MC6S M4x6mm Stainless Steel Bolts
8 x K6S M6x8mm Stainless Steel Bolts
6 x K6S M6x20mm Stainless Steel Bolts

• Download Product Sheet (.pdf)
• Accessories / Spare Parts

• This fuel rail replaces our old Porsche 964/993 fuel rail with item number 100-12-201, which is no longer available for purchase.

• The fuel rail is delivered without fittings and injectors, these need to be purchased as accessories.
