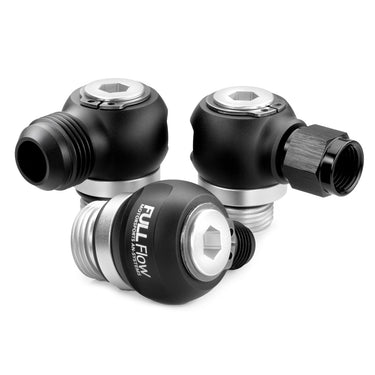

AN-10 ORB to AN-6 Full Flow Banjo female

Nuke Performance Full Flow Swivel Banjo Fittings come in many sizes and versions, and with both male and female output.

AN-10 ORB Full Flow Swivel Banjo Fittings allow for a space efficient installation with minimal flow loss, thanks to the oversized full flow internal design. The fitting provides 360 degree rotation even when tightened and is safe to use with all types of fuel, including alcoholic fuels.

• Swivel design, 360&degree; rotation even when tightened
• Oversized internal full-flow design, minimal flow loss
• A low-profile banjo fitting allows for space-efficient installations
• Safe for all types of fuel, including alcoholic fuels such as E85
• Leak-proof for both low and high pressure installations

Nuke Performance banjo fittings are available in multiple versions, making them ideal for various applications in your fuel system, oil system, vacuum and crankcase catch can installations. They are safe for all fuels, thanks to their double Viton O-rings. Nuke Performance Full Flow Swivel Banjo Fittings represent the next level of engineering for a 90-degree banjo fitting.

• Female swivel banjos give you endless possibilities and installation options.
Offered with both male and female ports, the female port provides flexibility to adapt Nuke Performance Full Flow banjos to various setups, including SAE quick couplers, barbs for rubber hoses and more.
AN-6 Male to SAE J2044 Ø7.89 5/16" Male Part #: 150-20-411
AN-6 Male to SAE J2044 Ø9.49 3/8" Male Part #: 150-20-412
AN-6 Male to AN-6 Male 1/8 NPT gauge adapter Part #: 310-02-201
AN-6 Male to Barb 8mm Male Part #: 700-07-101
AN- 6 Male to Barb 10mm Male Part #: 700-07-102

• Choose from different sizes when ordering :
AN-6 ORB to AN-6 Male Full Flow Banjo Part # : 710-01-101
AN-6 ORB to AN-8 Male Full Flow Banjo Part # : 710 -01-102
AN-6 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-103
AN-6 ORB to AN -6 Female Full Flow Banjo Part # : 710-01-104
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710 -01-107
AN-8 ORB to AN-6 Female Full Flow Banjo Part # : 710-01-108
AN-8 (3/4 UNF) to AN-6 Male Full Flow Banjo Part # : 710-01-113
AN-8 (3/4 UNF) to AN-8 Male Full Flow Banjo Part # : 710-01-114
AN-8 (3/4) UNF) to AN-10 Male Full Flow Banjo Part # : 710-01-115
AN-8 (3/4 UNF) to AN-6 Female Full Flow Banjo Part # : 710-01-116
AN-10 ORB to AN-6 Male Full Flow Banjo Part # : 710-01-109
AN-10 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-110
AN-10 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-111
AN-10 ORB to AN-6 Female Full Flow Banjo Part # : 710-01-112

If you wish to modify or supplement the use of top quality fittings, we recommend using our fittings that are designed to withstand high impact and excessive wear and in the right combination with the products they were intended for.

• AN-10 ORB Full Flow Banjo Specifications:
For more information on specifications, see the product sheet.

* Select outlet thread version when ordering

• Nuke Performance Full Flow Banjo includes:
1 x AN10 ORB Threaded Full Flow Bolt
1 x AN6 Male, AN8 Male, AN10 male, AN6 female banjo
1 x stainless steel C-clamp
2 x Viton O-ring, safe for all types of fuel, including E85

• Download product sheet (.pdf)
