Filler cap and fuel hose kit for CFC unit, bracket
Nuke Performance Remote quick lock filler cap for 50mm (2") fuel filler hose, for all motorsports and aftermarket fuel cells.
With a lightweight design, quick lock mechanism and a 5-bolt pattern, this filler cap is the ultimate solution for easy, secure installation on your aftermarket fuel cell or Nuke Performance CFCs With just a 90 degree twist, you can easily lock and unlock the lid.
• Quick-lock filler cap, with a 90-degree locking mechanism
• 50 mm (2") anti-static nylon filler hose
• Extremely light and flexible fuel filler hose
• Universal fitment for your motorsport build
• Safe for all types of fuel, including alcoholic fuels
• The kit fits directly onto a CFC unit equipped fuel cell
Simplify your CFC unit fueling process with the Nuke Performance filler cap and fuel hose kit for CFC units. With its 5-bolt pattern and easy-to-use mounting accessories, installation is simple. This filler cap is compatible with standard gas station nozzles and fuel can filler hoses, and is safe to use with all types of fuel, including E85 and other alcoholic fuels. Thanks to the Viton seals and gaskets, you can trust it to withstand even the most demanding conditions.
• A filler cap with a true quick-lock mechanism that takes no more than a 90-degree turn to lock the filler cap in place.
The Nuke Performance Remote quick-lock filler cap is a work of art, and we promise you will become addicted, opening and closing this aluminum masterpiece will confuse you. With its lightweight 90-degree quick-lock mechanism, you can easily unlock and lock the lid, making it perfect for motorsport applications where a remote filling solution is needed. It has a barbed connection that fits the 50mm (2") fuel filler hose.
• Safe for all types of fuel, including alcoholic fuels
• The barbed connection fits a 50mm (2") fuel hose
This filler cap is not only extremely convenient to use, but it is also built to last. It is safe to use with all types of fuel, including ethanol and methanol, and its durable construction means you can trust it to perform even in the most demanding conditions.
• The Nuke Performance Fuel Filler Hose Kit is the perfect solution for all your fueling needs. Its anti-static corrugated design allows for maximum flexibility.
Thanks to the lightweight construction of the fuel filler hose, an 80% weight saving compared to standard aftermarket 50mm (2") filler hoses is achieved, meaning it does not add unnecessary weight to your vehicle, making it ideal for motorsport applications.
• Extremely flexible thanks to its corrugated design
• Very lightweight, with up to 80% weight savings
• Antistatic nylon hose and Viton bushings
The Nuke Performance fuel filler hose is also very durable, can handle all types of fuel including E85 and other alcoholic fuels, even for long periods of time.It is perfect for use with aftermarket fuel cells such as ATL, Pyrotect, AluCell, Fuel Safe and others to a remote filler neck or OEM filler cap Whether you use it in motorsports or just need a reliable and flexible fuel transfer hose for your vehicle, this hose has you covered. p>
• Experience the ultimate convenience of filling fuel with our flexible and lightweight fuel filler hose kit.
Nuke Performance Filler cap and fuel hose kit for CFC units is designed with convenience in mind. Comes with the fuel filler hose kit, 90cm (3ft) with a corrugated design that makes it extremely easy to work with. Our fuel hose is easy to work with and weighs almost 80% less than other standard hoses on the market. Whether you are a professional mechanic or a DIY enthusiast, the Nuke Performance fuel filler hose is perfect for you. Easily route your fuel filler hose for motorsport installation with the combination of the Nuke Performance CFC unit and remote Quick Lock filler cap.
• Comes with everything you need to get a remote filling solution for your fuel cell equipped with a CFC unit.
The filler cap and fuel hose kit from Nuke Performance fits directly on the Nuke Performance CFC units, but can also be used for all other fuel cell installations that require a 50 mm (2") fill hose. The kit comes with everything you need including the remote fill adapter for the CFC filler neck and the chosen mount for the fill the fuel hose comes with Viton bushings and stainless hose clamps for a clean, safe and easy installation.
• For more information on the included parts, read more here. :
• Remote quick-lock filler cap : 150-30-101
• Fuel filler hose kit, 90 cm (3 feet) : 150-31-201
• Remote-mounted filler neck for the CFC unit: 150-05-202
• Steel mounting bracket with M6 bolts: 150-30-113
• Aluminum nut ring with M6 bolts: 150-30-112
• Designed and developed in Sweden, which guarantees the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Remote Quick Lock filler cap and fuel filler hose 90cm (3ft) are of the highest possible quality and feature the same features as all other lightweight motorsport products from Nuke Performance. Co-developed with worldwide motorsport teams, Nuke Performance parts ensure that functionality, as well as design, meet the absolute highest standards, or even set a standard of their own.
Order your Remote Quick Lock Refueling Solution today and experience the convenience and safety of our innovative refueling system.
There is no substitute for the quality of Nuke Performance. >
• Remote Quick Lock Filler Cap Specifications:
For more information on specifications, please see the product page. p>
| Hull Connection | 50.0mm (2.0") |
| Hull Length | 25 mm (0.98") |
| Bolt pattern | PCD 5x60 mm (2.36" ) / BCD 96mm (3.77") |
| Bolt dimensions | M6 (not included) |
| Included gasket | YES, Viton Gasket |
| Includes Wire | YES, Heat Shrink Stainless Steel Wire |
| Outer Diameter | 110.5mm (4.35") |
| Height Above Panel | 12.0mm ( 0.47 ") |
| Overall Depth | 64.0 mm (2.51") |
| Weight | 366 g (0.80 lb) |
| For Motorsport Use | YES |
| Fuel compatibility | Gasoline, ethanol, methanol, race fuel, diesel |
| Part # | 150-30-101 |
| EAN | 7340209505436 |
• Fuel Refill Hose Kit, 90 cm (3 ft) Specifications:
For more information on specifications, please refer to the product manual.
| Hose inner diameter | 54.0 mm (2.13") |
| Bushing inner diameter | td>50.0 mm (2.0") |
| Collar length | 29.0 mm (1.14") |
| Tube length | 22.8 mm (0.89") |
| Tube length (total) | 915.5 mm (3 ft) ) |
| Weight (excl. accessories) | 213 g (0.47 lb) |
| Weight (incl. accessories) | 289 g (0.64 lb) td> |
| Hose material | Nylon (antistatic) |
| Bushing material | Viton (x2 included) |
| Fuel compatibility | Gasoline, Ethanol, Methanol, Race fuel, Diesel |
| For motorsport use | YES |
| Cut to length | YES |
| Part # | 150-31-201 |
| EAN | 7340209505887 |

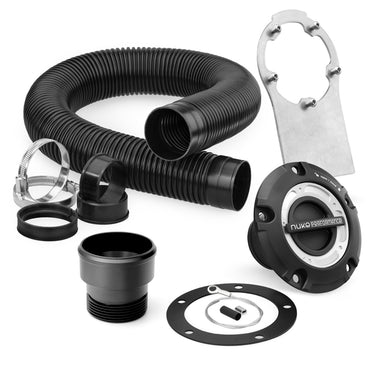

• Nuke Performance Fill Cap and Fuel Line Kit includes:
1 x Filler cap body with barbed connection for 50mm ( 2") hose
1 x Sealed and spring-loaded quick-lock filler cap
1 x Safety cable kit for M6 application
1 x Viton gasket, safe for all types of fuel
1 x Nylon fuel filler hose (90 cm / 3ft)
2 x Viton bushings with an inner diameter of 50mm (2")
2 x Stainless steel hose clamps
1 x POM clamp insert (used if the hose is cut to length)
5 x K6S M6x12 stainless steel bolts
1 x Steel bracket or aluminum nut ring *
1 x Remote-mounted filler neck for the CFC unit, for 50 mm (2") hose
* depends on bracket or nut ring option selected
