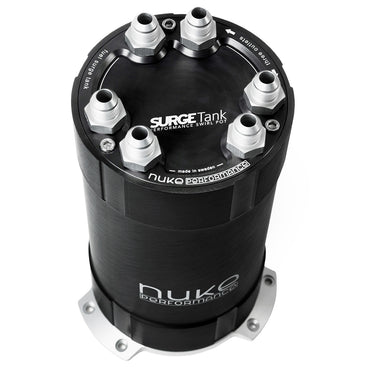

2G Fuel Surge Tank 3.0 liters for external fuel pumps

Second generation Nuke Performance 3.0 liter Fuel Surge Tank for external fuel pumps, now with three outlets for up to three external fuel pumps. Top quality combined with outstanding performance.
This new updated version has been developed and designed to handle up to three external fuel pumps, each with a separate fuel supply from the surge tank where each fuel pump uses its own AN-8 socket allowing you to choose between different settings.

• Lightweight motorsport surge tank
• For a single, double or triple high pressure fuel pump
• Each fuel pump has its own AN-8 socket for surge tank
• 3.0 liter surge tank capacity
• Made in Sweden
• 100% safe for all types of fuel
• Supplied with AN-8 to AN-8 male coupling

With the option to fit up to three external high pressure fuel pumps, this oversized fuel pump is ready to deliver a steady flow of fuel for any installation even over 1800hp. This new version can handle three individual external fuel pumps with its 3 x AN-8 (3/4 UNF) outlet couplers.

• Choose between single, dual or triple external fuel pump setup
Run one, two or three external fuel pumps with full fuel supply from this oversized 3.0 liter surge tank. All three fuel pumps get their fuel from the bottom of the surge tank with the internal fuel pickup tubes. Designed and manufactured to handle extreme amounts of power with the same characteristics as all Nuke Performance products.

• For popular external in-line fuel pumps
This is a perfect solution to use in conjunction with external high pressure fuel pumps such as Deatschwerks DW250il, Deatschwerks DW350il, Bosch 044, AEM 400L, AEM 380L, Aeromotive A750 and many more. This surge tank is also the perfect solution for those running a mechanical fuel pump or an in-line brushless fuel pump from Aeromotive, Protec, Fuelab and many more, which is mounted in-line.

• High flow thanks to oversized AN-8 sockets for all needs
2G Fuel Surge Tank 3.0 liter for external fuel pumps uses 6x AN-8 (3/4 UNF) ports and comes with 6 x AN-8 (3/4) to AN-8 male coupling and 2 x AN-8 (3/4 UNF) plugs (for the two that choose to run one or two external fuel pumps). With this setup you can deliver extreme fuel flow to your engine and thanks to the oversized 3.0 liter fuel tanks you will have enough fuel in all conditions and at all times.

2G Fuel Surge Tank 3.0 liter for external fuel pumps acts as a buffer so that the fuel pumps are always supplied with fuel for high output as the return line from your engine leads straight back into the FST, it stays full at any time.

• Mount your fuel pumps with Nuke Performance mounts
The Nuke Performance lightweight universal mounts fit most external fuel pumps and come with 60mm inserts for fuel pumps such as the Bosch 044, Deatschwerks 250il, Deatschwerks 350il, AEM 380 LPH and many more fuel pumps of the same size. There is also a 55mm and a 43mm insert as accessories for other in-line fuel pumps such as the popular Ti Automotive Walbro GSL392. Available in a single and dual version, the bracket is extremely lightweight and allows you to trust your setup when pushing your car beyond known limits.
Single Universal Fuel Pump Bracket Part # : 950-01-201
Dual Universal Fuel Pump Bracket Part # : 950-02-201
43mm insert for Walbro GSL392 Part # : 950-01-101

Combine your fuel pumps, fuel filter or combination into a single fuel line with our lightweight, safe and hassle-free Fuel Log 4P Manifold. Works perfectly with the Dual Universal Bracket.
Collector for 2 x Bosch 044 Part # : 100-10-202
Collector for 2 x Walbro GSL392 Part # : strong> 100-10-203
Collector for 2 x Nuke Fuel Filter Part # : 100-10-206
Collector for 1 x Bosch 044 and 1 x Nuke Fuel Filter Part # : 100-10-204
Collector for 1 x Walbro GSL392 and 1 x Nuke Fuel Filter Part # : 100-10-205

• How does a surge tank and how it flows
Your stock fuel pump or your aftermarket lift fuel pump in your stock fuel tank or your aftermarket fuel cell acts like a pickup fuel pump that fills the surge tank and keeps it full of fuel to maximize fuel flow and minimize the risk of starvation which can seriously damage your inline fuel pumps and engine. For more information, visit our guide that explains it even more.

• Available in different configurations to fill all your needs
Our fuel surge tank comes in several different sets, each designed for maximum performance. It comes with an aluminum mounting bracket with a six-bolt pattern that makes for a secure fit in any installation. They are available for external fuel pumps but also for internal fuel pumps in the tank. Depending on which setup you choose, they come with a varied number of electrical connections, but regardless of model, it is always equipped with our oversized electrical connectors that handle x10 the current used. The surge tank for external fuel pumps is available in two sizes, a 3.0 liter version and a smaller 2.0 liter version to suit installations where space is an issue.

• Comes with 6 x AN-8 Coupling and Plugs for all possible setups
Comes with an aluminum mounting bracket for easy mounting and 6 x AN-8 (3/4 UNF) to AN-8 male Coupling and 2 x AN-8 (3/4 UNF) plugs to use when running 1 or 2 fuel pumps and want to block the leftover outlets. Other size fittings are sold separately as accessories.
AN-8 (3/4 UNF) to AN-6 Male Part #: 700-01-101 span>
AN-8 (3/4 UNF) to AN-8 Male Part #: 700-01-102
AN-8 (3/4 UNF) to AN-10 Male Part # : 700-01-103

• Developed with high motorsport demands in mind
Developed with worldwide motorsport teams, this fuel surge tank is set to perform in all conditions and for all horsepower needs. Used in all types of motorsports such as drag racing, drifting, GR racing, time attack and rally where external fuel pumps are very popular due to their ease of service. Designed to withstand the destructive properties of alcohol fuels, including methanol and ethanol.

• Made in Sweden, guaranteeing the highest possible quality strong>
The 2G Fuel Surge Tank 3.0 liter for external fuel pumps is developed, designed and manufactured by Nuke Performance for the highest possible quality and with the same characteristics as all other parts in the light motorsport range. There is no substitute for the quality of Nuke Performance!

• Fuel Surge Tank for External Fuel Pumps includes:
1 x 3.0 Liter Fuel Surge Tank
1 x 6 Bolt Pattern Aluminum Mounting Bracket
6 x AN-8 (3/4 UNF) to AN -8 Male Coupling
2 x AN-8 (3/4 UNF) plugs
3 x internal fuel pick-up tubes

• Fuel surge tank specifications
For more information on functionality, see the FAQ guide.

• Accessories / Spare Parts
• Installation Documentation (.pdf)
• FAQ - How a Fuel Surge Tank Works

Combine your fuel pumps, fuel filters or in combination into a single fuel line with our lightweight, safe and hassle-free Fuel Log 4P Collectors Works perfect together with Dual Universal Bracket.
Collector for 2 x Bosch 044 Part # : 100-10-202
Collector for 2 x Walbro GSL392 Part # : 100-10-203
Collector for 2 x Nuke Fuel Filter Part # : 100-10-206
Collector for 1 x Bosch 044 and 1 x Nuke Fuel Filter Part # : 100-10-204
Collector for 1 x Walbro GSL392 and 1 x Nuke Fuel Filter Part # : 100-10-205
