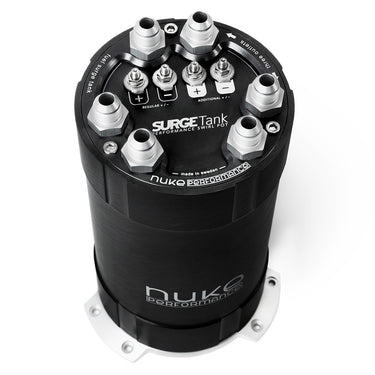

2G Fuel Surge Tank 3.0 liters for internal fuel pumps
The second generation Nuke Performance 3.0 liter Fuel Surge Tank, now for 1, 2 or 3 internal high pressure fuel pumps, the highest quality combined with outstanding performance.
This new updated version is the first of its kind specially developed and designed to mount up to three internal fuel pumps in the same unit. Each fuel pump uses its own AN-8 socket allowing you to choose from the most imaginable settings.
• Lightweight motorsport surge tank
• Fits a single, dual or triple high pressure fuel pump
• Each fuel pump has its own AN-8 socket
• 3.0 liter surge tank capacity
• Made in Sweden
• Safe for all types of fuel, including alcoholic fuels
• Supplied with AN-8 to AN-8 male coupling
With the ability to mount up to three high pressure fuel pumps, this oversized fuel surge tank is ready to deliver fuel for more than 3500hp, this is the most universal fuel pump on the market.
• Choose between single, dual or triple internal fuel pump setup
Run one, two or three fuel pumps individual or in two stages with multiple electrical contacts on the cylinder head. Designed and manufactured to handle extreme amounts of power with the same characteristics as all Nuke Performance products.
• 1-3 x Deatschwerks DW200 / DW300
• 1-3 x AEM 320L
• 1-3 x Aeromotive Stealth 325 / 340 / 450
• 1-3 x Ti Automotive Walbro GST400 / GST450 / GST520
• 1-3 x many other 39mm fuel pumps...
• The fuel pumps are mounted with the internal billet mounting bracket
This second generation Nuke Performance Fuel Surge Tank comes with an internal bracket for up to three internal fuel pumps with an outer diameter of 39mm, this is the most common fuel pump size and makes a perfect fit and combination for most setups imaginable. It also fits the very popular Ti Automotive, Walbro GST400, GST450 and GST520 fuel pumps and its design siblings such as the Aeromotive Stealth 450.
• High flow fuel pumps without OEM fuel tank customization
With our external fuel surge tank you minimize the risk when running on low fuel that the system cannot handle the extremely harsh the driving such as drifting, drag racing and track days where you can exceed 2g, which can result in fuel loss. With this setup you can count on maximum fuel delivery, a safe solution for your engine and installation even when conditions are as demanding as they get. Being able to mount high flow fuel pumps in the tank without major customization to your stock fuel tank is almost as important, this is really the only setup you need. With this setup you can deliver extreme fuel flow to your engine and thanks to the oversized 3.0 liter fuel tanks you will have enough fuel in all conditions and at all times.
2G Fuel Surge Tank 3.0 liter for internal fuel pumps acts as a buffer so that the fuel pumps are always supplied with fuel for high output as the return line from your engine leads straight back into the FST, it stays full at all times.
• How to Fit Fuel Pumps in a Fuel Surge Tank
The Surge Tanks from Nuke Performance come with everything you need to easily install any standard fuel pump, but we recommend adding one of our fuel pump mounting kits for optimal functionality and serviceability. For the 2G Fuel Surge Tank 3.0 liter for internal fuel pumps you need a single fuel pump kit for each fuel pump, so for example if you run two fuel pumps you need two single kits. All fuel pumps are securely mounted in all conditions thanks to the internal billet aluminum fuel pump mount.
Single Fuel Pump Mounting Kit Part # : 150-20-103
• Additional Fuel Pumps : Explore our selection of fuel pumps
• How a surge tank works and how it flows
Your stock fuel pump or your aftermarket lifts the fuel pump in your stock fuel tank or your aftermarket fuel cell acts as a pickup fuel pump that fills the surge tank and ensures that the high pressure fuel pumps within the oversized surge tank always have enough fuel to maximize fuel flow and minimize the risk of starvation which can seriously damage your engine. For more information, visit our guide that explains it even more.
• Available in different configurations to meet all your needs
Our fuel surge tank comes in several different sets, each designed for maximum performance. It comes with an aluminum mounting bracket with a six-bolt pattern that makes for a secure fit in any installation. Depending on which setup you choose, they come with a varied number of electrical connections, but regardless of model, it is always equipped with our oversized electrical connectors that handle x10 the current used. For the version 2G Fuel Surge Tank 3.0 liters for internal fuel pumps, it is equipped with dual stage connectors, so you can choose whether to run the different fuel pumps on different stages, fuses or simultaneously.
span>
• Comes with 6 x AN-8 Coupling and plugs for all possible setups
Comes with an aluminum mounting bracket for easy mounting and 6 x AN-8 (3/4 UNF) to AN-8 male Coupling and 2 x AN-8 (3/4 UNF) plugs to use when running 1 or 2 fuel pumps and want to block left -over outlet. Other size fittings are sold separately as accessories.
AN-8 (3/4 UNF) to AN-6 Male Part #: 700-01-101 span>
AN-8 (3/4 UNF) to AN-8 Male Part #: 700-01-102
AN-8 (3/4 UNF) to AN-10 Male Part # : 700-01-103
• Developed with high motorsport demands in mind
Developed with worldwide motorsport teams, this fuel surge tank is set to perform in all conditions and for all horsepower needs. Used in all types of motorsports such as drag racing, drifting, GT racing, time attack and more. Designed to withstand the destructive properties of alcohol fuels, including methanol and ethanol.
• Made in Sweden, guaranteeing the highest possible quality
2G Fuel Surge Tank 3.0 liters for internal fuel pumps is developed, designed and manufactured by Nuke Performance for the highest possible quality and with the same characteristics as all other parts in the lightweight motorsports range. There is no substitute for the quality of Nuke Performance!
• Fuel Surge Tank for Internal Fuel Pumps includes:
1 x 3.0 Liter Fuel Surge Tank
1 x 6 Bolt Pattern Aluminum Mounting Bracket
6 x AN-8 (3/4 UNF) to AN -8 Male Coupling
2 x AN-8 (3/4 UNF) Plugs
1 x Mounting Bracket for Triple 39mm Fuel Pumps
3 x 1/4 BSPP to 8mm Barb (Fuel Hose) Coupling
• Fuel Surge Tank Specifications
For more information on functionality, see the FAQ guide.
| Part # | 150-01-206 |
| Length | 265 mm (10.43”) |
| FST diameter | Ø 148 mm (5.82”) |
| Diameter of console | Ø 178mm (7.00”) |
| Mounting points | 6 x M6 (Ø 6.5mm / 0.25") |
| Weight | 2880g (6.12lb) |
| Outlet Thread | AN-8 (3/4 UNF) |
| Inlet Thread | AN-8 (3/4 UNF) |
| Return Thread | td>AN-8 (3/4 UNF). |
