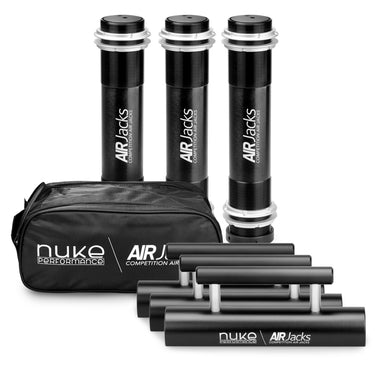

Air Jack 60 C 3pc Set, with Petcock ball valve

Complete Set of 3 Nuke Performance 20 BAR / 290 PSI Air Jacks: Fast, lightweight, reliable and easy to use air jack kits for motorsport applications.

The all new high pressure valves from Nuke Performance are the ultimate upgrade for any motorsport vehicle. Designed for use with an air cylinder, they elevate your experience both on the race track and in the workshop, delivering next level performance and convenience.

• Lightweight motorsport on board air jacks
• 20 BAR (290 PSI) - 30 BAR (435 PSI) working pressure
• For use with an air cylinder
• Set with jacks, safety support and extra hose kit
• 3-pc set lifts 1344 KG (2964 LB) as low as 20 BAR (290 PSI) span>
• Total lift length of 230 mm (9.1")

Nuke Performance Air Jack 60 Competition high pressure valves are fast, light and reliable, making them easy to install even in tight spaces chassis spaces, thanks to their compact diameter Be prepared for any unexpected problems on track day— these air intakes allow for quick and efficient repairs, so you can get back on the track in no time.

• Ultralight, high-strength air intakes: designed for ultimate performance and durability.
The body is made of high-strength, machined aluminum profile, ensuring the thinnest possible wall thickness to achieve minimal weight without compromising functionality. Inside, it houses a robust aluminum piston rod for exceptional durability. Made from ultra-durable low-friction polyoxymethylene, these air jacks represent the next level of engineering, going beyond the popular low-pressure valves from Nuke Performance here).

• Elevate Your Performance: Customizable air jack system with precision control, all connected to an air cylinder.
Nuke Performance Air Jack 60 Competition high pressure jacks are designed for use with 18- 30 BAR (260-435 PSI) provided by an air cylinder. Along with our extensive range of accessories, it is easy to tailor an adjustable system according to your needs.

• For use with a compressed air/argon cylinder
• Optimal working pressure between 20-30 BAR (290-435 PSI)

With only 20 BAR (290 PSI) each air jack can lift 448 KG ( 988 LB), resulting in a total lifting capacity of 1792 KG (3950 LB) in a 4-jack set.The high pressure system requires an air cylinder regulator, allowing you to precisely adjust the pressure to suit each vehicle, ensuring compatibility with most motorsport applications using the Nuke Performance high pressure valve. weight when working on or under your vehicle, it is important to use air jack locks (available here) to prevent accidents caused by leaks, malfunctions or mishandling. Nuke Performance 60C Safety Props clamp securely in place when the air jack is fully extended. If you purchase your air jacks as part of one of ours kits available, always includes necessary safety supplies.

• Complete sets of 3 or 4 air intakes for all types of motorsports, ensuring you get the necessary parts for your installation with minimal effort
Each kit comes with 3 or 4 jacks and safety supports along with a nylon carry bag for safety supplies, to complement the jacks we offer several different options to optimize the installation.

• Hardline aluminum tube kit for space-efficient installations
• Nylon braided PTFE hose kit for quick and easy pulling

Choose from different hose/hose kits, the preferred pressure connection and the wide range of accessories to get the kit that is perfect for your vehicle. Read more about the different wiring options here:
Air Jack 60 C Hardline Kit Part # : 580-10-101
AIR Jack 60 C PTFE Hose Kit Part # : 580-10-910

• Complete your Air Jack installation: Essential lances, valves and accessories for seamless operation.
To control the configuration of the air jack we provide a wide selection of accessories, so you can easily choose the option that best meets your specific needs.Be sure to explore all available accessories to find the perfect fit for your installation, and take the time to learn more about the different options here:
Air Jack Male Connector, AN- 6 Part # : 570-20-101
Air Jack Petcock Male Connector, AN-6 Part # : 570-20-102
Air Jack Quick Release Connector Valve, AN-6 Part # : 570-20-103
Air Jack Valve Housing Part # : 570-20-201
Air Jack Lance, AN-6 Part # : 570-01-201
Air Jack Lance High Pressure Hose 2 m (6.5 ft) Part # : 570-01-201

20 BAR (290 PSI) Air Jack setting:
Recommended operating pressure for Air Jack 60C.

30 BAR (435 PSI) Air Jack setting:
Maximum operating pressure for Air Jack 60C.

• How do I mount Nuke Performance Air Jacks to my vehicle
We offer a range of steel mounts designed to be welded directly to the body or chassis in your construction. These brackets are supplied raw and can be easily adjusted to meet your specific dimensions.

• We recommend the pipe bracket for a rigid installation
• Brackets are best welded to a welded-in cage or a pipe chassis

Whether you choose a plate or bracket, we recommend using both lower and upper attachment points to ensure a secure and durable installation engineered to meet the requirements, making your installation process easier and more reliable with Nuke Performance mounting accessories.
Steel Plate Part #: 580- 10-017
Steel Bracket Part # : 580-10-018
Steel Pipe / Pipe Part # : 580-10-019 (recommended)

• Designed and developed in Sweden, guaranteeing the highest possible precision, quality and performance .
Developed and designed in-house by Nuke Performance, the Nuke Performance Air Jack 60C Competition, High Pressure air jacks are of the highest possible quality and embody the exceptional standards characteristic of all Nuke Performance lightweight motorsport products developed together with worldwide motorsport teams, ensuring that this second generation surpasses the first and meets the absolute highest standards, or even sets a new standard for itself.

There is no substitute for the quality and performance of Nuke Performance.

• Air Jack 60 Competition, High Pressure Specifications
For more information on specifications, see the product manual.

* Nuke Performance Air Jacks and their accessories should not be used with gases other than those listed in the compatibility list.
** Use a drop of thread lock for added safety, but avoid excess to prevent difficult removal and thread damage. Prop
1 x Nylon Safety Prop Carry Bag

Air Jack 60 C Hardline Kit includes: *
1 x AN-6 female to Hardline hose, 90 degree hose end
4 x AN-6 ORB male to Hardline hose, 90 degree hose end
3 x T-coupling for Hardline hose Hose end
10m (32.8 ft) Aluminum hardline, OD 7.92 mm (5/16")

Air Jack 60 C PTFE hose kit includes: *
1 x AN-6 female to PTFE, 90-degree hose end
4 x AN-6 ORB male to PTFE, 90-degree hose end
3 x T - Fitting for AN-6 PTFE Tubing
10m (32.8 ft) Full Flow AN-6 PTFE Tubing

Available Air Jack Male Connectors: *
1 x Air Jack Male Connector, AN-6
1 x Air Jack Petcock Ball Valve Male Connector, AN-6
1 x Air Jack Quick Coupling Valve, AN-6

* Included if optioned, kits available with or without one of the extra hose/hose kits and with or without one of the available male fittings/valves.

Note: > Mounting brackets, air jack lance, elephant feet and spares, all must be ordered separately as they are not included in the available kits.
