Air Jack 60 C Hardline Kit
A premium hardline kit with durable aluminum tubing and precision engineered hose ends, designed to create a reliable and efficient hardline system for the Nuke Performance Air Jack 60C and 90C.
Installation of the Nuke Performance high pressure Air Jack 60C and low pressure Air Jack 90C air outlets is made easy with this hard kit, designed for 8-30 BAR (120-435 PSI) . It contains everything you need for a 3 or 4 piece air jacket setup, allowing a seamless connection between your chosen valve and the air jacket.
• Works for both 8 BAR ( 120 PSI) and 20 BAR (290 PSI)
• Includes 10m / 32.8ft of 8mm hardline aluminum tubing
• Fits 3 / 4 pc Air Jack 60C / 90C Motorsport Setups
• Quick and easy piping with the included hose ends
• Connects with 90 degree hose ends at all 5 connections
This Nuke Performance kit includes all the necessary AN-6 Coupling to connect the air outlets to your chosen valve. Easy to install, it comes with OD 7.92mm (5/16") rigid aluminum tubing and the necessary couplings for a 3 or 4-piece air jacket set.
• Comes with all the necessary couplings to connect your connection valve to your air outlets.
The hard line kit includes 90 degree hose ends for each air outlet and a female AN -6 90-degree hose end that easily connects to any Nuke Performance air outlet lance valve (available here With the included T-block adapters, this kit allows for easy routing in most vehicle setups, whether you're using a 3-piece or 4-piece configuration.
The hardline kit provides an ultra-lightweight installation, saving almost 3kg (2.20lb) compared to the PTFE kit also offered by Nuke Performance it may take a bit more effort to install than the nylon braided PTFE kit (available here), it's perfect for pulling through tight spaces. Kit includes 10m (32.8ft) OD 7.92mm (5/16") hard aluminum tubing. . When purchasing one of the available air jack kits (available here), a connection kit may be included.
• Air Jack Hardline Kit Specifications
strong>For more information on specifications, see the product manual.
| Max Working Pressure | 37 BAR (540 PSI) |
| Compatibility | Compressed Air, Argon, Nitrogen * |
| Temperature Range | -20°C to 150°C (-4°F to 302°F) |
| Hard Line Finish | Raw aluminum alloy |
| For motorsport use | YES |
| Hardline working pressure | 37 BAR (540 PSI) |
| Hardline burst pressure | 50 BAR (725 PSI) |
| Hardline inner diameter | 6.0 mm (1/4") |
| Hardline outer diameter | 7.92 mm (5/16") |
| Part # | 580-10-101 |
| EAN | 7340209507812 |
* Nuke Performance Air Jacks and their accessories should not be used with gases other than those listed in the compatibility list.
• Download user manual (.pdf)
• Accessories/spare parts

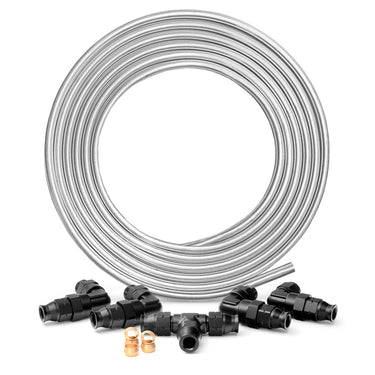

Air Jack Hardline Kit includes:
1 x AN-6 female to hardline hose, 90 degree hose end
4 x AN-6 ORB male to hardline hose, 90 degree hose end *
3 x T-coupling for Hardline hose end **
10m (32.8ft) aluminum hard line, OD 7.92mm (5/16")
4 x 1/4 BSPP to AN-6 female adapter ***
* Only 3pc used on a 3pc air jack kit, the 4th not needed
** Only 2pc used on a 3pc air jack kit, the 4th not needed
*** Only used when installing Air Jack 90C, for Air Jack 60C these are not needed
