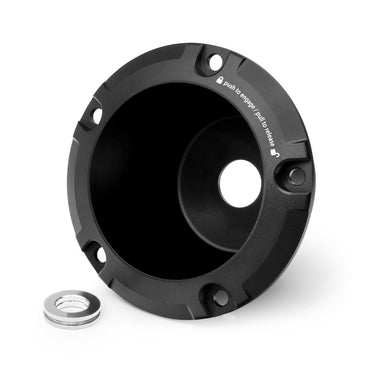

Air Jack valve cover
Optimal installation and protection; mount and protect your air outlet connector with ease with this air outlet valve cover.
The most convenient way to install your air outlet valve or connector is to use this lightweight aluminum air outlet valve cover. This practical cover mounts directly to the vehicle body and secures the valve or connection in a protected but easily accessible location.
• Lightweight aluminum valve cover
• Protects the jack valve during racing
• 5-bolt M6 bolt pattern, easy to mount on body or chassis
Secure your air jack lance connection from the harsh conditions on the race track with this cover. Pair it with the Air Jack Valve Protection Cap to prevent debris from entering your high pressure system, ensuring optimal performance and longevity.
• Compatible with Multiple Nuke Performance Air Jack Connectors for a secure, long-lasting fit on the track.
The Air Jack Valve Cover is compatible with two Nuke Performance connectors: Air Jack Male Connector, AN-6 (available here), and Air Jack Quick Release Connector Valve, AN-6 (available here). It includes a stainless steel adapter, which allows both valve types to be mounted in the same housing. Please note that the optional petcock valve (part number 570-20-102) is not compatible with this enclosure.
Air Jack Lance AN-6 Part # : 570 -10-001
Air Jack Male Connector, AN-6 Part # : 570-20-101
Air Jack Quick Release Connector Valve Part # : 570 -20-103
• Ensure optimal performance and secure your Air Jack system with a combination of the valve protection cap and cover.
Combine the cover with the Air Jack Valve Protection Cap (available here) for a safe and protected installation of your air jack system. This setup keeps the valve and high-pressure system free of debris, ensuring long-term protection and optimal performance for both high- and low-pressure valve systems. The Nuke Performance Air Jack Valve Cap is compatible with the handy Air Jack Lance (available here), as well as the Air Jack 90C (low pressure) and Air Jack 60C (high pressure) from Nuke Performance.
Air Jack Valve Protection Cap Part # : 570-20-202
• Air Jack Valve Capture Specifications
For more information on specifications, contact us directly.
| Materials | Aluminum body, stainless steel tray |
| Fits parts | 570-20-101, 570-20-103 * |
| Bolt size | M6 (not included) |
| Bolt pattern | PCD 5x105. 9 ** |
| Mounting diameter | 22.5mm (0.88") / 14.5mm (0.57") |
| Outer diameter | 120.0mm (4.72") ** |
| Height above panel | 12.5mm (0.49") |
| Depth from flange | 56.5mm (2.22") |
| Weight, with washers | td>289.0g (10.19oz) |
| For motorsport use | YES |
| Part # | 570-20-201 |
| EAN | 7340209507867 |
* Housing is not compatible with the petcock valve, part number 570-20-102.
