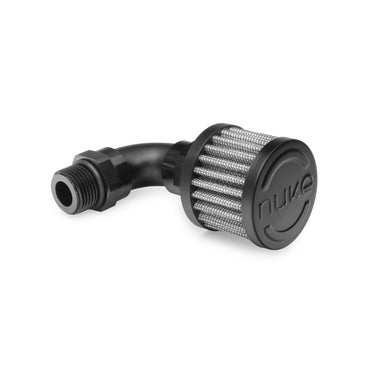

AN-10 ORB to Atmospheric Air Filter Kit
Nuke Performance Universal Air Filter with AN-10 ORB to AN-10 ORB 90 Degree Coupling, the perfect kit to fit an external air filter to your Universal Catch Can.
The Nuke Performance Universal Air Filter is the perfect addition to any Universal Catch Can equipped with an AN-10 ORB thread, and with the angled 90 degree ORB to ORB male the male adapter allows you to fit this filter to all Nuke Performance catch cans.
• AN-10 ORB to Atmospheric setup for universal catch cans
• Large filtration area thanks to the large filter diameter
• Fits directly on all Nuke Performance catch cans
• The 90-degree angled kit enables low profile installation
This universal air filter uses an AN-10 threaded port instead of a hose and clamps, with the wide variety of coupling available you can adapt this filter for different application needs, for example this kit used as an atmospheric vent filter for your catch can.
• Space efficient installation with the angled adapter, an extra step of filtration for the installation of your catch can .
Nuke Performance catch cans already come with a filtered outlet port, but with this kit you can add another layer of protection, or just as a visually appealing addition to your engine bay. This AN-10 ORB to Atmospheric Air Filter Kit comes with everything you need to install it directly to the AN-10 ORB female threaded outlet port on all Nuke Performance catch cans (available here).
Universal Catch Can 0.25 Liter Part # : 270-01-201
Performance Catch Can 0.75 Liter Part # : 265-01-201
Carbon Catch Can 0.75 Liter, Matte Carbon Part # : 265-01-203
Carbon Catch Can 0.75 Liter, Glossy Carbon Part # : 265-01-202
Competition Catch Can 0.5 Liter Part # : 260-01-202
Competition Catch Can 1.0 Liter Part # : 260-01-201
• Universal Air Filter's threaded port makes one filter work like twenty, the possibilities are never ending with all available Coupling.
With the threaded AN-10 ORB female port, you can choose the type of connection you want to use, and with this kit we combined the universal air filter with a 90-degree AN-10 ORB to AN-10 ORB coupling (found here) that allows you to mount the air filter in a space-efficient manner with all Nuke Performance universal oil catch cans.
• AN-10 ORB to Atmospheric Air Filter Kit Specifications:
For more information on specifications, contact us directly.
Filter housing | Anodized aluminum housing |
Filter media | Stainless steel reinforced cotton media |
Threads | AN-10 ORB |
Diameter | 50 mm (1.96") |
Length | 100 mm (3.94") |
Weight | 128 g (4.51 oz) |
For motorsport use | YES |
Part # | 700-04-132 | td>
EAN | 7340209505757 |
• AN-10 ORB to Atmospheric Air Filter Kit includes:
1 x Universal air filter with AN-10 ORB thread
1 x AN-10 ORB to AN-10 ORB 90 degree adapter
• Universal Oil Catch Cans
