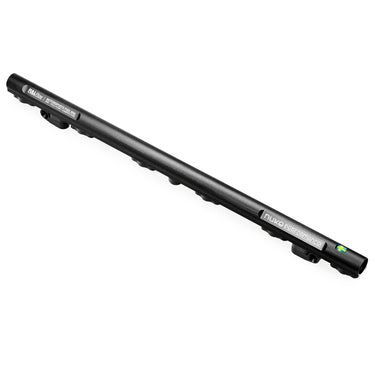

BMW 6cyl M30 fuel pipe

Nuke Performance fuel rail for the BMW 6cyl M30 engine, oversized internals, lightweight design and equipped with our unique injector safety clips.

The BMW 6cyl M30 fuel rail comes with mounts for the M30 engine and allows you to go with AN fuel lines and aftermarket injectors for your classic BMW engine.

• Lightweight fuel rail to suit BMW 6cyl M30 engines
• For use with Bosch EV14L type injectors
• AN-8 ORB threads on both ends allow for high fuel flow
• Supplied with brackets for easy mounting to BMW M30 intake
• AN-6 ORB side outlet/inlet for optional applications
• Safe for all types of fuel, including alcoholic fuels such as E85 span>

Nuke Performance's latest generation of fuel rails provide an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that Nuke Performance fuel rails have become known for, providing a leak-proof seal even during a crash where the fuel rail would tear out of the intake manifold.

• Perfect fit for a BMW 6cyl M30 engine, supplied with the necessary hardware to mount to the intake.
Nuke Performance BMW 6cyl M30 fuel pipe comes with brackets for the 6cyl BMW M30 engine.
• BMW M30B25 1981-1987
• BMW M30B30 1971-1990
• BMW M30B32 1977-1986
• BMW M30B34 1982-1988
• BMW M30B35 1988-1992

Please be aware that this fuel rail is only compatible with the BMW M30 engine, we offer a wide range of fuel rails for BMW straight six engines such as the S38, M20, M50, M54 and S50 (available here).

• AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide variety of fittings and adapters to choose from.
The fuel rail uses AN-8 ORB threaded fittings for each end and also offers an additional side port with AN-6 ORB thread. We offer a wide range of fittings and our low profile full flow banjo fittings for a space efficient installation.

ORB to AN-8 Male Part # : 700-04-105
AN -8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : strong> 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB Plug Part # : 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129 span>

• All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
A hallmark of Nuke Performance is the use of Injector Safety Clips, designed to maintain a flawless seal for injectors even under the load of extreme fuel pressure.

This design prevents fuel spillage, even in scenarios where the fuel pump continues to run or there is residual pressure in the fuel system.

• Designed, and developed in Sweden, ensuring the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The BMW 6cyl M30 fuel rail is of the highest possible quality and has the same signature as all other lightweight motorsport products from Nuke Performance. Developed with worldwide motorsport teams and BMW experts, Nuke Performance parts ensure that functionality, as well as design, meet the absolute highest standards, or even set a standard of their own.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.

There is no substitute for the quality of Nuke Performance.

• Nuke Performance BMW 6cyl M30 fuel rail Specifications:
For more information on specifications, see product sheet.

<<<<<<<<<<<<

Supplied with brackets for	6cyl M30 1971-1992
Injector type specification	Bosch EV14 L style
Close inlet/outlet threads	AN-8 ORB (see range) *
Extra port thread	AN-6 ORB (see range) *
Length	545.00 mm (21.46")
Height	32.00 mm (1.25")
Weight	435.00 (15.34 oz)
Fuel Compatibility	Gasoline, Petrol, Ethanol, E85, E100, Methanol
For Motorsport Use	YES
Replaces Old Part #	100-02-203 **
Part #	120-02-106
EAN	7340209507089

* not included, be sure to select the necessary accessories when placing an order
** old generation that did not include mounts for the M30 engine

• Nuke Performance BMW 6cyl M30 fuel rail includes:
1 x AN-8 ORB Full Flow fuel rail profile for BMW 6cyl M30 engine
2 x aluminum brackets for BMW 6cyl M30 engine
1 x AN-6 ORB plug
6 x Nuke Performance Injector safety clips
12 x MC6S M4x6mm Stainless Steel Bolts
4 x MC6S M6x10mm Stainless Steel Bolts
2 x MF6S M6x25mm Stainless Steel Bolts

• Download Product Sheet (.pdf)
• Accessories / Spare Parts

• This fuel rail replaces our old universal BMW 6cyl 6x100 M30 and S38 versions with part number 100-02-203, which is no. longer ones are available for purchase.

• The fuel rail is delivered without fittings and injectors, these need to be purchased as accessories.
