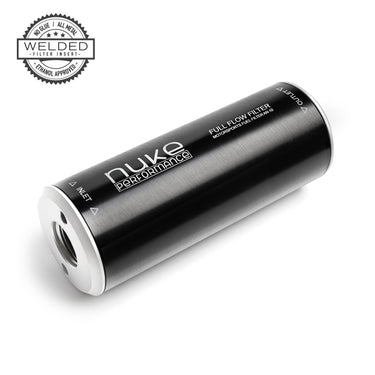

Fuel filter Slim 10 micron AN-10 - Cellulose filter element

Nuke Performance high flow inline slim series fuel filters, available with 10 and 100 micron filter elements in both cellulose and stainless steel. Slim design to suit installations where space is an issue.
This lightweight in-line high-flow fuel filter, with its new improved lightweight design, is equipped with either a classic cellulose filter element for gasoline or with the unique Nuke Performance welded fuel filter insert that is 100% safe for alcoholic fuels such as ethanol.

• Lightweight slim design for motorsport in-line fuel filter
• Safe for all types of fuel, including ethanol and methanol
• Available with welded stainless steel filter elements
• Now with AN-10 ORB, for the highest possible flow
• Over 60 square inches of filter area
• 750 LPH, high flow with near no flow loss
• Available with both 10 and 100 micron inserts

Nuke Performance Slim series fuel filters are suitable for those with high demands on fuel flow and maximum filtration. Nuke Performance's high quality fuel filters act as affordable insurance that protects your engine and should never be overlooked, without proper filtration it won't be long before something goes terribly wrong in your setup.

• Choose the right filter element to suit your needs and fuel, available with inserts for both petrol and alcohol fuels
The narrow range high flow fuel filter comes with either a classic cellulose 10 micron fuel filter insert, these inserts are affordable and easy to replace for your gasoline installation. When running alcoholic fuels, such as ethanol, methanol and racing fuels, you should choose one of our unique welded fuel filter elements available in 10-micron and 100-micron. These elements are now made of 100% stainless steel with unique welded end caps that eliminate the common glue that can dissolve when switching from gasoline to ethanol or when running aggressive fuels such as race fuel. When you run the new upgraded fuel filters from Nuke Performance, you don't have to worry about filter elements ever breaking.

• 10-micron cellulosic elements for gasoline/gasoline
• 10-micron stainless steel elements for all types of fuel
• 100-micron stainless steel elements for all types of fuel

The The new improved slim design provides high flow with almost no flow loss even when running high flow high pressure pumps such as Deatschwerks DW400 and Ti Automotive GST450 / GST 520 (Walbro) fuel pumps. Also suitable for brushless fuel pumps.

• When running alcoholic fuels, choose the correct fuel filter version to suit your filtration needs
When running ethanol, methanol or other alcoholic fuels you should always use our stainless steel filter elements as they have long life and trouble-free functionality. We strongly recommend that you clean the internal filter element once a season, and if you use the cellulose filter elements, you should replace this every month to prevent it from dissolving during use.
Alcoholic fuels = stainless steel insert. Gasoline / Gasoline = insert of cellulose or stainless steel. Diesel = cellulose or stainless steel insert.

Nuke Performance also offers the same fuel filter inserts in a series of fuel filters with integrated mounts, the same functionality in a stylish and functional design with integrated stainless mounts. And for those who need a higher flow capacity, larger filtration area fuel filter, Nuke Performance offers the Nuke Performance PF200 10-Micron High Performance Fuel Filter.
Nuke Performance Fuel Filter. , with brackets : See range here
Nuke Performance PF200 10 micron fuel filter : 200-02-201 / 200-02-202

• Easy and accessible mounting with a variety of options
To mount the Slim series fuel filter from Nuke Performance, it is recommended to use the Nuke Performance Fuel Filter Bracket available in a single or double design to suit all your filter needs. The universal, lightweight, billet mount from Nuke Performance comes with a variety of inserts to fit your fuel filters and also fuel pumps such as the popular in-line fuel pumps such as the Bosch 044, Deatschwerks DW350il, etc. Be sure to place your fuel filter in a safe place that prevents the filter from being deformed in an accident. We also offer an affordable and simpler bracket solution with two stainless p-clamp brackets that pair perfectly with Nuke Performance fuel filters.
Single Nuke Performance Fuel Filter Bracket Part # : 950-01-212
Dual Nuke Performance Fuel Filter Bracket Part # : 950-02-212
Stainless Steel Fuel Filter Brackets 2pc Part # : 200-20-102

• Now with Oversized AN-10 ORB Fuel Line Coupling
Oversized AN-10 inlet/outlet threads made for maximum fuel flow capacity possible. Since 2021, our fuel filters are now ready to use AN-10 ORB Coupling for the highest possible flow and are available in a large variety. Additional AN-10 ORB to AN-6, AN-8, AN-10 and AN-12 Coupling sold separately as accessories.
AN-10 ORB to AN-6 Male Part # : 700-01-108
AN-10 ORB to AN-8 Male Part # : 700-01-109
AN-10 ORB to AN-10 Male Part # : 700-01-110
AN-10 ORB to AN-12 Male Part # : 700-01-111

• How to choose which fuel filter to install and where to I mount the fuel filter in my fuel setup
Choosing the right fuel filter for your installation is easy and we have everything you need. If you are running an internal fuel pump with a pre-filter included, we recommend a 10-micron fuel filter between the fuel filter and your fuel rail/injector. When using an external fuel pump, you should use a 100-micron fuel filter between the fuel tank and the fuel pump and a 10-micron fuel filter between the fuel pump and your fuel rail/injector. The placement of your in-line fuel filters should be positioned so that in the event of an accident, the filter will be in a safe position to avoid damage that could result in unwanted leakage. Be sure to place the filter where it is easily accessible for service and filter element replacement when needed.

• Complete your high flow fuel system with Nuke Performance Full Flow Series Fuel Lines, Hose Ends and Coupling
Nuke Performance offers a wide variety of both PTFE and Nitrile fuel line systems for all your fueling needs. The Nuke Performance Fuel Filter Slim 10 / 100 micron AN-10 is a perfect match to the Nuke Performance Full Flow series fuel lines. Available in AN-4 to AN-12 and in a wide variety of available fittings and accessories. And with the convenient selection of fuel line tools, fitting your fuel system has never been easier.
PTFE Full Flow series AN-6 to AN-12 : See range here
AN Full Flow series AN-4 to AN-12 : See range here

• Developed to high demands from worldwide motorsport
Made in Sweden and co-developed with worldwide motorsport teams, this range of fuel filters has never stopped evolving. Always ready to give you maximum function, filtration and quality even under demanding conditions. Nuke Performance Slim Series Fuel Filters are manufactured to the same specifications as all other parts in the lightweight Nuke Performance motorsport range.

There is no substitute for quality. of Nuke Performance!

• Changing your filter element due to heavy contamination
We strongly recommend changing or cleaning (stainless steel element only) the internal filter element once per season, especially when using ethanol due to its dissolving properties of the impurities in the fuel system. Even the stainless steel inserts may need to be replaced due to heavy contamination.
Replacement Filter Element Part #: 200-10-101 / 200-10- 102 / 200-10-105
Fuel Filter End Cap O-Ring Part #: 200-10-103
Key to open fuel filter Part #: 200-20-101

• Nuke Performance Fuel Filter Slim 10 / 100 micron AN-10 Specifications
For more information on specifications, contact us directly.

* depending on fuel filter version

• Nuke Performance Fuel Filter Slim 10 / 100 micron AN-10 Includes:
1 x Fuel Filter Housing with AN-10 ORB Threads
1 x Optional Fuel Filter Insert

• Product Update 2021 :
To satisfy our customers' wishes, our fuel filters are now supplied with AN-10 ORB threads.Larger selection of Coupling (see AN-10 ORB range) and even higher flow.
