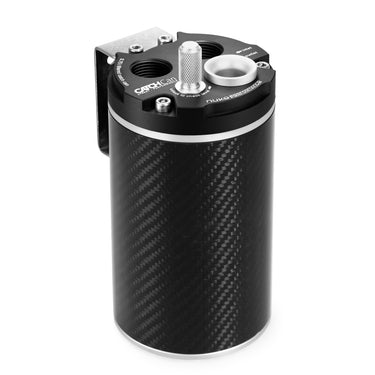

Carbon Oil Catch Can 0.75 liter, Matte carbon

Nuke Performance universal 0.75 liter oil catch can with genuine lightweight carbon fiber container. Available in gloss and matte versions.
Universal Dual Inlet Catch Can with internal baffle and with a unique 300 micron filtered outlet port. Equipped with dual AN-10 ORB intakes for easy customization and installation. Double filtration valves for competition, motorsport and tuning for all types of vehicles in need of a crankcase gas trap. Can be used for both atmospheric and recirculating settings.

• Real-Carbon Oil Catch Can
• Choose between glossy and matte carbon fiber finish
• Save an incredible -25% in weight
• Made in Sweden
• 300-micron filter and stainless steel internal baffle
• AN-10 ORB threads, for the highest possible flow

• Atmospheric and recirculating installation with the same catch can.
Carbon Oil Catch Can 0.75 liters uses AN-10 ORB threads, both for the dual inlet and for the single outlet. This gives you a wide range of fittings and applications. For an atmospheric installation, use the included aluminum trumpet for a clean look and high functionality.

• World-class dual filtration with maximized functionality with filtered outlet port.
This unique dual internal filtration system prevents particles from escaping the air with 300-micron filter disc used both when using the capture tank for atmospheric or recirculating installation. The dual filtration system works to filter your crankcase gases, giving you outstanding filtration that saves your engine in the short and long term.

• Real lightweight Carbon Oil Catch Can - first of its kind, now available in both gloss and matte finishes.
The Nuke Performance Oil Catch Can range is already used all over the world and in all types of motorsports and tuning styles but we thought we could take it to the next level - so we have we have now developed a lighter, more "stylish" premium carbon fiber version of our Performance Catch Can with 0.75-litre internal capacity. This version is as much as 25% lighter than the regular version. Available in both gloss and matte carbon finishes to suit any style.

• Anodised dipstick for easy reading of internal level.
It comes with an easily accessible dipstick for quick and easy reading of the internal level, it should be simple and functional and quickly checking the level between laps on the race track, or when checking your levels before driving the track or streets is as easy as it gets. Draining is made easy with the optional peacock valve that connects to the 1/4 drain thread at the bottom. Both the dual inlet and single outlet ports use the AN-10 ORB Coupling for the highest possible flow and are available in a wide variety. AN-10 ORB to AN-6, AN-8, AN-10 and AN-12 male Connector sold separately as an accessory.
An-10 ORB Plug Part # : 700-04 -117 *
AN-10 ORB to AN-6 male Part # : 700-01-108
AN-10 ORB to AN-8 male Part # : strong> 700-01-109
AN-10 ORB to AN-10 trade #: 700-01-110
AN-10 ORB to AN-12 trade # : 700-01-111
* used for configuration of an inlet, blocks the extra the inlet port.

• Draining is made easy with the optional drain kit.
Draining is made easy with the optional peacock valve that connects to the 1/4 drain thread at the bottom. It comes with a 1/4" peacock valve that fits right into the bottom of the catch can. Route the included 2 m / 6 ft hose to an easily accessible location, such as the wheelhouse. This makes it easy to drain/collect the residue without having to disassemble the catch can from the vehicle.
Catch Can Drain Kit Part # : 265-10-101

• Made in Sweden, guarantees the highest possible quality.
Developed, designed and manufactured in Sweden, in-house by Nuke Performance This is of the highest possible quality and with the same characteristics as all other lightweight motorsports range from Nuke Performance.
This guarantees the highest possible quality - there is no substitute for the quality of Nuke Performance.

• Carbon Oil Catch Can 0.75 liter Specifications:
For more information on specifications, please contact us directly.

* without included / extra fittings

• Nuke Performance Carbon Oil Catch Can 0.75 liter Includes:
1 x 0.75 liter carbon catcher can (matte or glossy depending on version)
1 x Stainless steel bracket
1 x AN-10 7/8 UNF Atmospheric trumpet (for atmospheric use)
1 x 300 micron filter disc for the outlet port
1 x 1/4 BSPP connector

p>

• Product update 2022:
To satisfy our customers´ wish, our oil catch cans are now supplied with AN-10 ORB threads. Large range of Coupling (see the AN-10 ORB range) and even higher flow.

• Download product sheet (.pdf)
• Accessories / Spare parts
