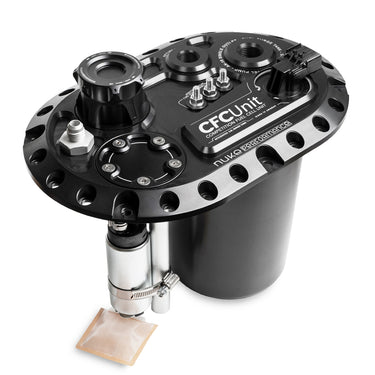

CFC unit for brushless fuel pumps - Competition Fuel Cell Unit, with integrated fuel surge tank

Choose your preferred CFC unit to match your chosen fuel pump setup. This version is designed with additional electrical connectors that handle all the wiring needed when using brushless fuel pumps from Protec, Deatschwerks, Fuelab and others.

• NEW : The AN-6 fuel cell valve kit fits directly onto the vent valve on the CFC unit for easy installation
The CFC unit is equipped with a rollover AN-8 (3/4 UNF) to AN-6 Vent fitting male, and the easiest way to route the vent line to a safe and functional position is to fit a fuel cell valve kit from Nuke Performance. Available in several sizes, from AN-6 to AN-12, you can choose the kit that best suits your needs. If you want to use a larger venting line than AN-6, you also need to change the fittings on the venting valve, see the range here. The vent kit comes with a 1m (3.3ft) nitrile fuel hose and a universal air filter that prevents debris from entering your fuel system.
Fuel Cell Vent Valve AN-6 Part # : 150-22-206
AN-8 (3/4 UNF) to Male Adapters : View Range

• Our wide range of accessories and mounting options suit all your fuel delivery needs within an aftermarket fuel system
CFC unit uses AN-10 ORB outlet and AN-8 ORB return inlet Coupling. The use of the oversized, high-flow outlet AN-10 ORB combines the internal fuel pumps into a single fuel line and minimizes the need for external equipment, hoses and couplings. The included anti-rollover vent coupling is AN-6 (3/4 UNF) and can be exchanged for AN-6 to AN-10 if needed. Outlet and Return Coupling AN-6, AN-8, AN-10 and AN-12 are sold separately as accessories.
• Outlet Coupling :
AN-10 ORB to AN-6 Male Part # : 700-04-108
AN-10 ORB to AN-8 Male Part # : 700-04-109
AN-10 ORB to AN-10 Male Part # : 700-04-110
AN-10 ORB to AN-12 Male Part # : 700-04-111
span>• Return Coupling:
AN-8 ORB to AN-6 Male Part #: 700-04-104
AN-8 ORB to AN-8 Male Part # : 700-04-105
AN-8 ORB to AN-10 Male Part # : 700-04-106
AN- 8 ORB to AN-12 Male Part # : 700-04-107

• How does Nuke Performance work? Competition Fuel Cell Unit
The CFC unit functions as a fuel pump hanger with an integrated surge tank for motorsport applications where safety and functionality are of utmost importance. It is designed to mount directly to an aftermarket fuel cell using a standardized 24-bolt pattern. For more information on the operation of the CFC device, see our Youtube video explaining its functions or visit our FAQ guideé which tells more about the CFC unit.
• Youtube : How does the CFC unit work from Nuke Performance
• FAQ : How does the CFC unit work
• Product manual : Download our detailed product manual!

• How to connect fuel pumps to the electrical connectors and fuel lines
Competition Fuel Cell Unit (CFC Unit) for brushless fuel pumps, with an integrated fuel surge tank, use a 6-pin bulkhead connector to handle the necessary wiring points when using brushless fuel pumps. The CFC unit is supplied with the bulkhead connector, pins and male/female connectors required to fit a single or dual brushless fuel pump mounted in the surge tank. Each brushless fuel pump uses 3 pins for its external controller. With the use of fewer amps, the bulkhead connector makes a perfect match for an easy and service friendly solution.

• 6 pin bulkhead for the high pressure fuel pumps
• 3 x 6mm Coupling for the auxiliary lift pump

The extra 6mm electrical Couplings are intended to be used for the lift pump, and with the three connectors you have many options to choose from. You can mount a brushless lift pump, a low pressure lift pump or even a dual low pressure setup if you want to mount the fuel pumps in each corner of the fuel cell. The fuel line connects to the supplied barb fittings, but we recommend adding one of the fuel pump mounting kits for your selected fuel pumps to get the full benefits of easy maintenance, fail-safe functionality and long-lasting durability even when running alcoholic fuel e.g. ethanol.

• Additional venturi pickup line ensures internal fuel level even when the smallest pickup is used pump
Both Protec Brushless Cobra Compact and Detschwerks DW440 Brushless in-tank fuel pumps allow you to connect an additional venturi pickup kit. The Venturi kit is not intended to be used alone, without the use of a pickup pump. The purpose is to help ensure fuel level in the internal surge tank while accommodating a smaller and lower flow lift fuel pump mounted in the fuel cell. The brushless fuel pump CFC unit has the space and functionality of a dual venturi kit installed alongside a single lift pump, all at the same time.

• Low profile fuel filler cap or remote filler neck for 50mm fuel filler hose
The high profile CFC unit comes with a low profile filler cap with integrated roll protection. However, for those who prefer a remote fill, we offer a remote fill neck for a 50-52mm fuel fill hose. It fits right into the CFC unit and uses an integral rollover protection mounted on the underside of the CFC unit. The remote fill tube is available as an accessory.
Remote fill tube for 50mm fuel hose Part # : 150-05-202

• Choose the right fuel level sender for your aftermarket fuel cell
Most applications require an accurate fuel level sender for an optimal experience. The Nuke Performance CFC unit fits the most common fuel level senders that use the SAE 5 bolt pattern. The CFC unit comes with a low profile and lightweight block-off plate that can easily be replaced with a fuel level sensor. You may have your CFC unit supplied with an FLS, be sure to select the correct length when placing an order. For easy selection, measure the depth of your fuel cell and subtract approximately 20mm (0.78") and choose the fuel level sensor that comes closest to your measurement.
• 0-90 Ohm FLS Unit: See our range of fuel level senders

• How to fit any of the CFC Units from Nuke Performance to your own custom fuel cell
The CFC unit from Nuke Performance is made to fit the standard 24 bolt 6x10" pattern. We offer an aluminum flange that allows the CFC unit to be bolted to a custom made fuel cell that uses this standard pattern. You can either weld it to your aluminum cell or copy the pattern to your top plate and bolt the CFC unit by placing the top plate between the flange and the CFC unit. The CFC unit comes with a Viton gasket (safe for all types of fuel), which is perfect for custom fuel cell applications.
Aluminum Weld Flange 24 Bolt Pattern Part # : strong> 150-05-300

• Complete your high flow fuel system with Nuke Performance Full Flow Series fuel lines, hose ends and Coupling
Nuke Performance offers a wide variety of both PTFE and Nitrile fuel line systems for all your fueling needs. The lightweight fuel cell filler plates from Nuke Performance are a perfect match to the Nuke Performance Full Flow series fuel lines. Available in AN-4 to AN-12 and in a wide variety of available fittings and accessories. And with the convenient selection of fuel line tools, fitting your fuel system has never been easier.
PTFE Full Flow series AN-6 to AN-12 : See the range here
AN Full Flow series AN-4 to AN-12 : See the range here

• Made in Sweden with high demands from worldwide motorsport
Co-developed with worldwide motorsport teams, it has become a common sight in motorsports such as time attack, drifting and GT racing. Saving weight is often as important as chasing horsepower and for several of our customers they have been able to make weight savings of more than 10kg by upgrading to our compact and lightweight solution. Nuke Performance CFC Unit for brushless fuel pumps - Competition Fuel Cell Unit, with integrated fuel surge tank, perfectly suited for aftermarket fuel cells and is designed, developed and manufactured in Sweden to the highest possible quality, with the same characteristics as the other parts in the lightweight Nuke Performance motorsport range.

There is no substitute for the quality of Nuke Performance.

• Nuke Performance CFC Unit for Brushless Fuel Pumps Specifications
For more information on CFC unit specifications, please refer to the product manual.

• High Profile CFC Unit for Brushless Fuel Pumps includes:
1 x Nuke Performance CFC Unit - High Profile Version for Brushless Fuel Pumps
1 x Delphi 6-pin Bullet Connector with Viton O-ring seal
2 x female electrical connectors with 6 connection pins each
2 x 1/4" BSPP to male barb 8mm hose Coupling
1 x 1/4" BSPP plug, when using only one high-pressure fuel pump
2 x 39mm inserts for high-pressure fuel pump mount
2 x 42mm inserts for high pressure fuel pump mount
1 x Viton gasket for 24 bolt pattern fuel cells (safe for alcoholic fuels)
1 x low profile filler cap (remote filler neck available as accessory)
1 x Dual billet fuel pump mount and adjustable pickup pump mount
1 x AN-8 ( 3/4 UNF) to AN-6 Safety valve male
1 x FLS spacer, used for fuel level sensors with a non-symmetrical bolt pattern
24 x 1/4-28 UNF x 1 bolts with nylon washers

• Download user manual (.pdf )
• Accessories/spare parts
• FAQ : How it works competition fuel cell unit work

• No modification needed prior to installation
The new high profile version of the Nuke Performance CFC Unit requires no modifications to an ATL or Fuel Safe fuel cell prior to installation.

• No fuel pumps included in the CFC units
CFC unit is supplied without fuel pumps, if required the preferred fuel pump in our selection menu or see the lists of the fuel pumps here.
