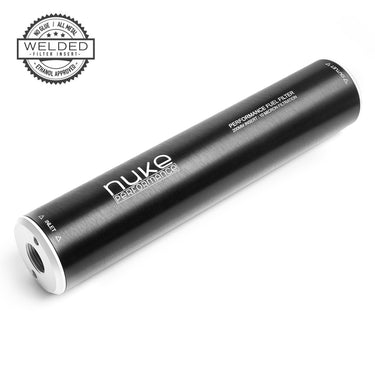

Fuel filter PF200 10 micron AN-10 - Welded stainless steel element

Nuke Performance PF200 High Flow Motorsport Fuel Filter: Maximum filtration, minimal flow loss and 100% safe for alcoholic fuels.
This lightweight high flow inline fuel filter is equipped with the unique Nuke Performance welded fuel filter insert which is 100% safe for alcoholic fuels such as ethanol.

• Lightweight motorsport with a sleek design filter
• Safe for all types of fuel, including ethanol and methanol
• Welded stainless steel 10-micron filter insert
• Now with AN-10 ORB, for the highest possible flow
• 200 mm oversized filter element
• 150 sq. in. filtration area
• 1800 LPH, extremely high flow with almost no flow loss

Nuke Performance Slim. series fuel filters are suitable for those with high demands on fuel flow and maximum filtration, and with the PF200 you get a massive 150sq. inch of filter surface and up to 1800 LPH flow capacity. Nuke Performance's high quality fuel filters act as affordable insurance that protects your engine and should never be overlooked, without proper filtration it won't be long before something goes terribly wrong with your setup.

• The right filter for your motorsport fuel system, suitable for builds up to 1500 horsepower with just one inline fuel filter
The high flow slim series fuel filter comes with the unique Nuke Performance welded filter inserts. When running alcoholic fuels, such as ethanol, methanol and racing fuel, you should choose one of our fuel filters with the unique welded filter element. These elements are now made of 100% stainless steel with unique end caps that eliminate the usual glue that can dissolve when switching from gasoline to ethanol or when running aggressive fuels such as race fuel. When you run the PF200 fuel filters from Nuke Performance, you don't have to worry about the filter elements ever breaking.

• 10-micron stainless steel filter element for all types of fuel
• Over 150 square inches of filtering surface
• New improved design, lighter weight and higher flow

The new improved slim design provides high flow with almost no flow losses even when operating high-flow, high-pressure pumps such as Deatschwerk's DW400 and Ti Automotive GST450 / GST520 (Walbro) fuel pumps. This fuel filter is recommended when running a brushless fuel pump from Protec, Fuelab or Deatschwerks.

• 10-micron stainless steel filter inserts with welded end caps, the perfect choice for high-demand, high-output fuel systems
The 200mm 10-micron stainless steel high-flow filter element is now made from 100 % stainless steel with unique welded end caps that eliminate the common glue that would dissolve when changing from gasoline to ethanol or when running aggressive fuels such as race fuel. When you run the new upgraded fuel filters from Nuke Performance, you don't have to worry about the filter elements ever breaking.
When you run alcoholic fuels, you should always use a stainless steel filter element, the most common cellulose elements are for gasoline, and should only be used for gasoline.

Nuke Performance also offers the same fuel filter inserts in a series of fuel filters with or without integral mounts, the same functionality in a stylish and functional design in different sizes and mounting options.
Nuke Performance Slim-series Fuel Filter: See range here
Nuke Performance Fuel Filter, with mounts: See range here

• Easy and accessible mounting with a variety of options and fuel filter mounts, for all motorsport fuel systems
To mount the Nuke Performance Slim Series fuel filter, it is recommended that you use Nuke Performance Fuel Filter Bracket available in a single or dual design to suit all your filtration needs. The universal, lightweight, billet mount from Nuke Performance comes with a variety of inserts to fit your fuel filters and also fuel pumps such as the popular in-line fuel pumps such as the Bosch 044, Deatschwerks DW350il, etc. Be sure to place your fuel filter in a safe place that prevents the filter from being deformed in an accident. We also offer an affordable and simpler bracket solution with two stainless p-clamp brackets that pair perfectly with Nuke Performance fuel filters.
Single Nuke Performance Fuel Filter Bracket Part # : 950-01-201
Dual Nuke Performance Fuel Filter Bracket Part # : 950-02-201
Stainless Steel Fuel Filter Brackets 2pc Part # : > 200-20-102

• Now with Oversized AN-10 ORB Fuel Line Fittings
Oversized AN-10 inlet/outlet threads made for the highest possible fuel flow capacity. Since 2021, our fuel filters are now ready to use AN-10 ORB Coupling for the highest possible flow and are available in a large variety. Additional AN-10 ORB to AN-6, AN-8, AN-10 and AN-12 Coupling sold separately as accessories.
AN-10 ORB to AN-6 Male Part # : 700-01-108
AN-10 ORB to AN-8 Male Part # : 700-01-109
AN-10 ORB to AN-10 Male Part # : 700-01-110
AN-10 ORB to AN -12 Male Part # : 700-01-111

• Complete your high flow fuel system with Nuke Performance Full Flow series fuel lines, hose ends and Coupling
Nuke Performance offers a wide variety of both PTFE and Nitrile fuel line systems for all your fueling needs. The Nuke Performance Fuel Filter Slim 10 / 100 micron AN-10 is a perfect match to the Nuke Performance Full Flow series fuel lines. Available in AN-4 to AN-12 and in a wide variety of available fittings and accessories. And with the convenient selection of fuel line tools, fitting your fuel system has never been easier.
PTFE Full Flow series AN-6 to AN-12 : See range here
AN Full Flow series AN-4 to AN-12 : See range here

• Developed to high demands from worldwide motorsport
Made in Sweden and co-developed with worldwide motorsport teams, the true high performance fuel filter PF200 from Nuke Performance has never stopped evolving. Always ready to give you maximum function, filtration and quality even under demanding conditions. Nuke Performance Slim Series Fuel Filters are manufactured to the same specifications as all other parts in the lightweight Nuke Performance motorsport range.

There is no substitute for quality. of Nuke Performance!

• Changing your fuel filter insert due to heavy contamination.
We strongly recommend cleaning the internal filter unit once per season, especially when using ethanol due to its dissolving impurities in the fuel system. If necessary, due to heavy contamination, you can purchase an additional 200 mm insert.
Replacement Filter Insert 10-micron Part #: 200-10-104
O-ring for fuel filter end cap Part #: 200-10-103
Pen wrench to open fuel filter Part #: 200-20-101

• Nuke Performance Fuel Filter PF200 10 micron AN-10 Specifications
For more information on specifications, contact us directly.

<<<<<<<<<<<<

PF200 Fuel Filter Part #	200-03-201
Replacement Filter Element Part #	200-10-104
Filter Element Micron	μm 10-Micron
Fuel Compatibility	Gasoline, Methanol, Ethanol, diesel
Length	270 mm (10.63")
Diameter	Ø 55 mm (2.16) ”)
Inlet thread	AN-10 ORB, display area
Outlet thread	AN-10 ORB, display area
Weight	1099g (2.42lb)
Filter area	150 sq. in
Working pressure / Max pressure	8 BAR (116 PSI) / 21 BAR (305 PSI)
Flow Capacity	1800 LPH
Pressure Drop	≈0.15 BAR (≈2.17 PSI)

ORB threads Larger range of Coupling (see AN-10 ORB range) and even higher flow.
