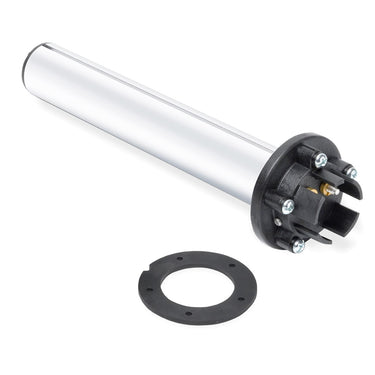

Fuel level sending unit 10" 0-90 Ohm
ISSPRO fuel level sending unit fits the Nuke Performance CFC unit.
0-90 Ohm fuel level sending unit available with our without fuel gauge that fits standard SAE 5-bolt mounting pattern.
Fits Nuke Performance fuel cells:
| 150-FLS-08 : 203 mm / 8" | Pyrotect 6.25 gallon fuel cellPyrotect 8 gallon fuel cellATL 30 liter saver cellATL 45 liter saver cellATL 45 liter Well Cell saver cellATL 60 liters sparcellATL 80 liter sparcell |
| 150-FLS-09 : 228 mm / 9" | Pyrotect 10 gallon fuel cellPyrotect 12 gallon fuel cellPyrotect 15 gallon fuel cellPyrotect 18 gallon fuel cellPyrotect 22 gallon fuel cellATL 40 liter fuel cellAluCell 20 liter aluminum fuel cellAluCell 40 liter aluminum fuel cellAluCell 45 liter Wellcell fuel cellAluCell 60 liter aluminum fuel cell |
| N /A | |
| 150-FLS-12 : 305 mm / 12" | Pyrotect 17 gallon fuel cellAluCell 80 liter aluminum fuel cell |
| 150-FLS-13 : 330 mm / 13" | Pyrotect 24 gallon fuel cell |
| 150-FLS-15 : 381 mm / 15" | bgcolor="#f0f0f0">N/A|
Ohm resistance:
0 Ohm : empty
90 Ohm : full
Optional specifications:
Also available as 240-33 Ohm, available here.
• Motorsport fuel level sending units, aftermarket fuel cells
Fits most common fuel cells including Pyrotect, ATL, Fuel Safe, Harmon, Premiere, Jaz and more, and is the perfect match for the Nuke Performance Competition Fuel Cell Unit.
• I lost my fuel level sender unit adapter plate, can I order a new one The CFC unit, what should I do
An adapter plate/spacer is needed to either fit a fuel level sensor that has a wider diameter than the hole in the CFC Unit or uses the standard asymmetric 5 bolt pattern often found on aftermarket fuel level sensors CFC unit product manual here.
5-bolt asymmetric adapter plate Part #: 150-10-117
• Approved for all types of fuel, for all types of motorsport
Approved for gasoline, methanol and ethanol. If you order together with a fuel cell, we will make sure you get the right one order.
• Order the fuel gauge without fuel level sending unit
strong>
If you need a fuel level gauge and have already purchased your sending unit, you can purchase the gauge as an accessory if needed.
Fuel Gauge OHM Rating 0-90 Ohm Part # : 150-FLG-01
• Download product manual (. pdf)
