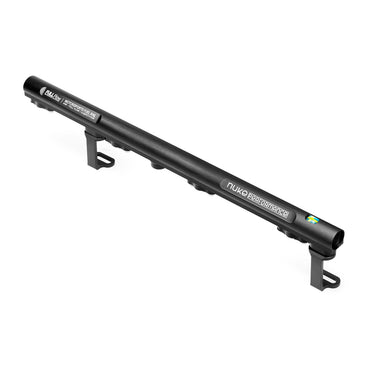

Porsche 4cyl 924S/944 fuel pipe

Nuke Performance fuel rail for Porsche 924S / 944, oversized internals, lightweight design and equipped with our unique injector safety clips.

Porsche 924S / 944 fuel rail comes with brackets for 924S and 944 intake and allows you to go with AN fuel lines and aftermarket injectors for your classic Porsche models.

• Lightweight fuel pipe to suit Porsche 924S / 944 8V engines
• Used with Bosch EV14L type injectors
• AN-8 ORB threads on both ends allow high fuel flow
• Comes with brackets for easy mounting on Porsche intakes
• AN-6 ORB side outlet/inlet for optional applications
• Safe for all types of fuel, including alcoholic fuels such as like E85

Nuke Performance's latest generation of fuel rails provide an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that Nuke Performance fuel rails have become known for, providing a leak-proof seal even during a crash where the fuel rail would tear out of the intake manifold.

• Perfect fit for a Porsche 924S and 944 8V intake, supplied with the necessary hardware to mount to the intake.
Nuke Performance Porsche 4cyl 924S /944 fuel rail comes with mounts for the 924S/944/951 engine. The fuel rail is equipped with brackets that fit the following models and years:
• 924S 1986-1988 2.5 8V
• 944 1985-1988 2.5 8V
• 944 1989 2.7 8V
• 944 Turbo (951) 1985-1991 8V
Be aware that this fuel line is incompatible with the 1982-1985 model 944 (square dash). We also offer fuel rails for other Porsche engines (available here).

• AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters to choose from.
The fuel rail uses AN-8 ORB threaded fittings for each end and also offers an additional side port with AN-6 ORB thread. We offer a wide range of fittings and our low profile full flow banjo fittings for a space efficient installation.

ORB to AN-8 Male Part # : 700-04-105
AN -8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : strong> 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB Plug Part # : 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129 span>

• All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
A hallmark of Nuke Performance is the use of Injector Safety Clips, designed to maintain a flawless seal for injectors even under the load of extreme fuel pressure.

This design prevents fuel spillage, even in scenarios where the fuel pump continues to run or there is residual pressure in the fuel system.

• Designed, and developed in Sweden, ensuring the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Porsche 4cyl 924S/944 fuel rail is of the highest possible quality and has the same signature as all other lightweight motorsport products from Nuke Performance. Co-developed with worldwide motorsport teams, Nuke Performance parts ensure that functionality, as well as design, meet the absolute highest standards, or even make their own.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.

There is no substitute for the quality of Nuke Performance. strong>

• Nuke Performance Porsche 4cyl 924S/944 fuel rail Specifications:
For more information on specifications, see product sheet.

<<<<<<<<<<

Supplied with brackets for	924S 1986 -188 2.5 8V944 1985-1988 2.5 8V944 1989 2.7 8V944 Turbo (951) 1985-1991 8V
Injector Type Specification	Bosch EV14 L Style
Inlet/Outlet Thread in ends	AN-8 ORB (see assortment) *
Extra port thread	AN-6 ORB (see assortment) *
Length	441.00 mm (17.36")
Height	32.00mm (1.25”)
Weight	348.00g (12.27oz)
Fuel Compatibility	Gasoline, Petrol, Ethanol, E85, E100, methanol
For motorsport use	YES
Part #	120-05-101
EAN	7340209506815

* not included, be sure to select necessary equipment when ordering

• Nuke Performance Porsche 4cyl 924S/944 fuel rail includes:
1 x AN- 8 ORB Full Flow Fuel Rail Profile for Porsche 924S/944
2 x Aluminum Brackets for Porsche 924S/944
1 x AN-6 ORB Plug
4 x Nuke Performance Injector Safety Clips
8 x MC6S M4x6mm Stainless Steel Bolts
4 x K6S M6x10mm Stainless Steel Bolts
2 x K6S M6x12mm Stainless Steel Bolts
2 x M6 Stainless Steel Washers

• Download Product Sheet (.pdf)
• Accessories / Spare Parts

• The fuel rail is delivered without fittings and injectors, these must be purchased as accessories.
