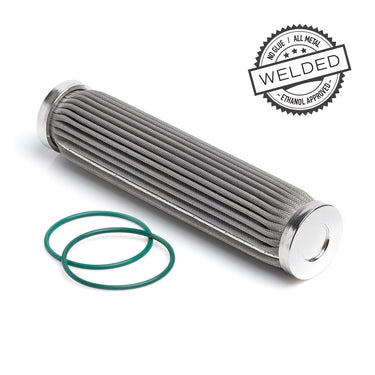

Replacement Filter Element 10 Micron PF200 - Welded Stainless Steel
Nuke Performance 200mm replacement filter insert. 10 micron stainless steel fuel filter for the Nuke Performance PF200 fuel filter.
This newly developed high flow fuel filter insert is 100% safe for alcoholic fuels such as ethanol.
• Safe for gasoline, methanol and ethanol
• Welded stainless steel filter insert
• 200mm oversized filter element
• High flow, almost no flow loss
• 10 micron stainless steel filter inserts with welded end caps
The high flow 200mm 10 micron stainless steel filter element is now made of 100% stainless steel with a unique welded end cap that eliminates the usual glue which can dissolve when changing from gasoline to ethanol or when driving aggressive fuels such as racing fuel. When you run the new upgraded fuel filters from Nuke Performance, you don't have to worry about the filter elements breaking again.
Two O-rings are included with the filter insert.
We strongly recommend cleaning the internal filter assembly once a season, especially when using ethanol due to its dissolving contaminants in the fuel system. If necessary, due to heavy contamination, you can purchase an additional 200 mm insert.
O-ring for fuel filter end cap Part #: 200-10-103
Pen wrench to open fuel filter Part #: 200-20-101
• 10 Micron PF200 filter element - stainless steel specifications:
For more information on specifications, please contact us directly.
| Filter / Micron | Stainless steel / 10 micron |
| Fuel Compatibility | Gasoline, Gasoline, Ethanol, Methanol, diesel |
| Length | 202mm (7.95") |
| Diameter | 42mm (1.65”) |
| Weight | 313g (0.69lb) |
| Filter area | 150 sq. in |
| Working pressure / Max pressure | 8 BAR (116 PSI) / 21 BAR (305 PSI) ) |
| Flow capacity | 1800 LPH |
| Pressure drop | &asymp ;0.15 BAR (≈2.17 PSI) |
| Part # | 200-10-104 |
| EAN | 7340209500592 |
• 10 micron PF200 filter element - stainless steel includes:
1 x 10 micron PF200 stainless steel filter element
2 x Viton O-ring
