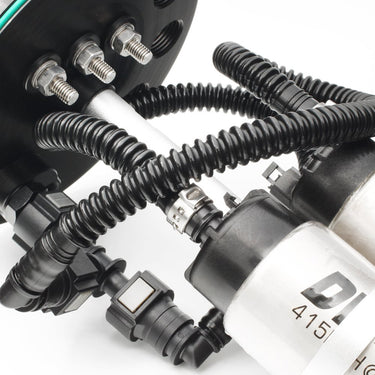

SAE ID10 Fuel Pump Assembly Kit for single fuel pump

Nuke Performance SAE in-tank fuel pump mounting kits, specifically designed for Nuke Performance CFC units and Fuel Surge Tanks. Safe for all types of fuel.

Safe for all types of fuel including ethanol and ideal for motorsport with quick coupling for easy maintenance and long life. These in-tank fuel hose kits are of motorsport standard and are ideal for quick, secure and stable mounting of your high pressure in-tank fuel pumps from Aeromotive, AEM, Deatschwerks, Ti Automotive (Walbro) and more. span>

• Lightweight and extremely durable
• 100% E85 approved
• Easy maintenance with quick coupling
• Quick and easy installation
• A high pressure system with minimal flow loss
• For single or dual internal fuel pumps

Available for single or dual in-tank fuel pumps. Fits fuel pumps with 7.5 - 10 mm outlet diameter. Find your fuel pump in the list below and select the correct size when you place an order.

• Fuel pump mounting kit Ø 7 - 8.2 mm (ID8) :
• AEM 320L #50-1200
• Deatschwerks DW200
• Deatschwerks DW300
• Deatschwerks DW420
• Protec Brushless Cobra Compact
• fuel pump with maximum outlet Ø of 8.1 mm

• Mounting kit for fuel pump Ø 8.4 - 10 mm (ID10) :
• Aeromotive Stealth 340
• Aeromotive Stealth 450
• Bosch BR540
• Deatschwerks DW400
• Deatschwerks DW440 Brushless
• Ti Automotive (Walbro) GST400
• Ti Automotive (Walbro) GST450
• Ti Automotive (Walbro) GST520
• fuel pump with maximum outlet Ø of 10.2mm

• Coiled Nylon Fuel Hose for High Flow and Long Durability
With the tank coiled black nylon fuel hose, you will never again have to worry about how the fuel hoses will cope with being submerged in fuel during long and demanding seasons or even if they are left in fuel when not in use for an extended period of time. It fits in tight installations like Nuke Performance CFC units and Nuke Performance Fuel Surge Tanks.

• SAE quick-coupling for all types of fuels and easy maintenance
The in-tank fuel pump kits use high-flow SAE quick-coupling with Viton O-rings. SAE J2044 standard fittings for high flow and maximum functionality and durability. Safe for all fuels, including alcoholic fuels such as ethanol. These fittings make your maintenance quick and safe with minimal tools and effort.

• Comes with everything you need for a simple installation
The Nuke Performance in-tank fuel pump mounting kit comes with all the fittings, hoses and accessories you need for a simple and easy installation. For more information, download the product manual and read more about each setting. This is the easiest way to install fuel pumps into the Nuke Performance CFC unit and Fuel Surge Tanks and is not designed to be used in any application other than Nuke Performance fuel performance products.

• Download User Manual (.pdf)

• A fuel pump kit includes: (150-20-101, 150- 20-103)
1 x 1/4 BSPP to SAE 9.49 male
1 x 1/4 BSPP plug
1 x Coiled 350mm fuel hose, pre-assembled with SAE fitting
1 x Hose clamp for one ear

• Dual fuel pump kit includes: * (150-20-102, 150-20-104)
1 x 1/4 BSPP to SAE 9.49 male, short
1 x 1/4 BSPP to SAE 9.49 male, long
2 x Coiled 350mm fuel hose, pre-assembled with SAE fitting
2 x Single ear hose clamp

• * Product update 2024 :
A new revised version of the dual kits (150-20-102 / 150-20-104) will replace the old version in the second quarter of 2024. The new kit does not use the T fittings used on the first generation installation kits. To view the first generation installation manual, click here to download (.pdf).
