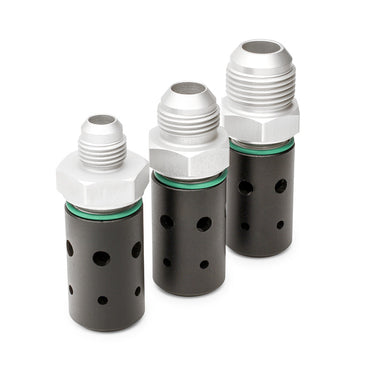

Tank valve safety valve AN-8 (3/4 UNF) to AN-10 male

The AN8 safety valve allows the fuel tank or fuel cell to maintain its status without pressure build-up or unwanted vacuum during use.

And it is equipped with rollover protection should an accident happen and the car ends up on the roof. Comes in three different sizes, all safe for gasoline, ethanol and methanol. Used by default on Nuke Performance CFC units. Comes with a Viton O-ring. Easy to clean, inspect and maintain with its simple two-piece design.

In the event of an accident, the internal stainless steel ball seals and prevents fuel from leaking out of the fuel tank or fuel cell into the vent line. p>

Min. mounting hole : 19 mm
Max. mounting hole : 20 mm
Max. material thickness : 6 mm

The vent safety valves are available in AN-6, AN-8 and AN-10 male coupling. And the hole for mounting is preferred to be 3/4 UNF threaded, otherwise hole diameter of minimum 19 mm and maximum 20 mm. Can be mounted on materials from 1 mm to 6 mm thickness.

Choose from different sizes when ordering.

If you want to modify or supplement the use of top quality fittings, we recommend using our fittings designed to withstand high impact and excessive wear and in the right combination with the products they were intended for.

Available in several sizes and variants.

Quantity: 1 pc
