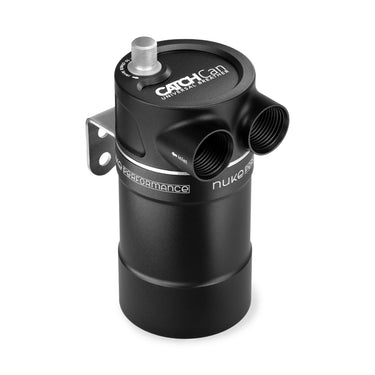

Universal Catch Can 0.25 liters

Nuke Performance Universal Catch Can 0.25 liter, the newest and smallest addition to the oil catch can range.

Universal oil catch can with single inlet and outlet with internal baffle and with a new oversized half circle 300 micron filter disc. Equipped with AN-10 ORB threads for both inlet and outlet ports. For motorsport, tuning and street use for all types of vehicles in need of a crankcase gas catch can.

• 0.25 liter catch can capacity
• 360° stainless steel rotating bracket
• Oversized 300 micron internal filter disc
• AN-10 ORB inlet/outlet , for the highest possible flow
• Easy drainage through the 1/4" drain plug
• Oil dipstick for quick and easy reading of internal levels

Nuke The Performance Universal Catch Can 0.25 liters (1.05 US cups) is the latest addition to the oil catch can, and thanks to its small form factor, it is a perfect complement to the larger Nuke Performance catch cans. Can be used for both atmospheric and recirculating installations. maximum functionality in a small form factor.
The unique interior prevents particles from escaping the oil trap, thanks to its internal 300 micron filter disc used for both atmospheric and recirculating installation.The internal filter takes care of filtering your crankcase gases and gives you outstanding filtration that saves your engine in the short and long term. contaminants, improves engine performance by cleaning up the intake air and being able to measure the contamination level gives you an opportunity to keep an eye on the wear and health of your engine.

• A new and smaller catch can, for easy application in even the tightest engine spaces.
This new addition to the Nuke Performance catch can lineup offers the same quality and function but in a much smaller design.

• Yes, size does matter This is our smallest oil catch can to date

The 0.25 liter capacity is perfect for everyday vehicles and is a perfect complement to the larger catch cans that Nuke Performance offers for motorsport applications, such as the lightweight 0.75 liter real carbon canister.

• Oversized, single AN10 inlet and outlet ports for maximum flow and various couplings to choose from.
The Universal Catch Can 0.25 Liter from Nuke Performance is able to use oversized AN-10 ORB threaded inlet and outlet ports thanks to its clever design. The ORB Couplings are available in various sizes and options and are sold separately as accessories.
AN-10 ORB to 8mm tubing Part # : 700-04-124
AN-10 ORB to 10mm tubing Part # : 700-04-125
AN-10 ORB to 13 mm Hose Part # : 700-04-126
AN-10 ORB to 16 mm Hose Part # : 700-04-127
AN-10 ORB to AN-6 Male Part # : 700-01-108
AN-10 ORB to AN-8 Male Part # # : 700-01-109
AN-10 ORB to AN-10 Male Part # : 700-01-110
AN-10 ORB to AN-12 Male Part # : 700-01-111

• Integrated dipstick for easy reading of the internal level, easy access on top of the latch can body in a new low profile version.
Being able to check the internal contamination level is crucial so that you empty the can in time, that's why we placed an anodized aluminum stick on top of the lid so it's quick and easy to check the level between laps on the racetrack, or when you check your levels before hitting the track or streets.

• It is quick and easy to check the level of the catch cans
• Easy to reach the dipstick in a new low profile design

Universal Catch Can 0.25 liter uses a new low profile version of the dipstick head that takes up minimal space thanks to its clever design.

• Draining is made easy with the optional 1/4" drain kit.
The Universal Catch Can 0.25 liter from Nuke Performance uses a two-piece design, making it very easy to empty the lower cop when needed, just unscrew the lower part and leave the upper part in the bracket with the hoses attached. But for an even easier way, use the optional peacock valve kit that uses the 1/4 drain port in the bottom. Route the supplied 2m (6 ft) hose to an easily accessible location, such as a wheelhouse. It makes it easy to drain/collect the residue removing the catch can from the engine compartment.
Catch Can Drain Kit Part # : 265-10-101

• Designed and developed in Sweden, ensuring the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Universal Catch Can 0.25 liter is of the highest possible quality and with the same signature as all other lightweight motorsport products from Nuke Performance. The parts from Nuke Performance are co-developed with worldwide motorsport teams, ensuring that both functionality and design meet the absolute highest standards, or even set their own standard.

There is no substitute for the quality of Nuke Performance.

• Universal Catch Can 0.25 liters Specifications:
For more information on specifications, see the product sheet.

* with included dipstick and drain plug fitted

• Nuke Performance Universal Catch Can 0.25 liters includes:
1 x 0.25 liter universal trap
1 x 360&deg stainless steel rotating bracket
1 x 300 micron filter disc for the outlet port
1 x anodized aluminum dipstick for level reading
1 x 1/4 BSPP plug (drainage port)
