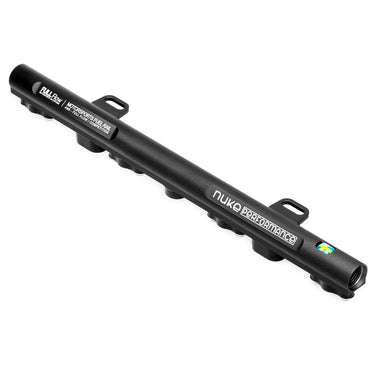

Volvo 4cyl Red Engine 8v/16v B23/230 fuel rail
Nuke Performance fuel rail for Volvo 4cyl 8v/16v engines, oversized internals, lightweight design and fitted with our unique injection protection clamps.
The Volvo 4cyl Red Engine 8v/16v B23/230 fuel rail comes with brackets for both the 8v and 16v engines and allows you to go with AN fuel lines and aftermarket injectors for your classic Volvo engine.
• Lightweight fuel pipe to fit Volvo Redblock 8v/16v engines
• For use with Bosch EV14 L-Type Injectors
• AN-8 ORB threads on both ends allow a high fuel flow
• Comes with brackets for easy mounting on 8v/16v intake
• AN-6 ORB side outlet/inlet for optional applications
• Safe for all types of fuel, including alcoholic fuels like E85
Nuke Performance's latest generation of fuel rails provide an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that Nuke Performance fuel rails have become known for, providing a leak-proof seal even during a crash where the fuel rail would tear out of the intake manifold.
• Perfect fit for a Volvo 4cyl 8v/16v B23/230 engine, supplied with the necessary hardware to fit onto suction.
Nuke Performance Volvo 4cyl Red Engine 8v/16v B23/230 fuel rail comes with mounts for the 4cyl Redblock 8v and 16v engines.
• Volvo 200 / 700 / 900 series, 4cyl 8v/16v Redblock engines
Fun fact, in 2024 the new AN-8 ORB fuel rail version replaced the popular first-generation 8v/16v fuel rail from Nuke Performance, one of the first products ever to come from Nuke Performance back in 2004. So 20 years later was it really is time for an update.
• AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of couplings and adapters to choose from.
the fuel rail uses AN-8 ORB threaded fittings for each end and also offers an additional side port with AN-6 ORB thread. We offer a wide range of fittings and our low profile full flow banjo fittings for a space efficient installation.
AN -8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : strong> 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB Plug Part # : 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129 span>
• All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
A hallmark of Nuke Performance is the use of Injector Safety Clips, designed to maintain a flawless seal for injectors even under the load of extreme fuel pressure.
• Designed, and developed in Sweden, ensuring the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Volvo 4cyl Red Engine 8v/16v B23/230 fuel rail is of the highest possible quality and has the same hallmark as all other lightweight motorsport products from Nuke Performance. Co-developed with worldwide motorsport teams, Nuke Performance parts ensure that functionality, as well as design, meet the absolute highest standards, or even make their own.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.
There is no substitute for the quality of Nuke Performance. strong>
• Nuke Performance Volvo 4cyl Red Engine 8v/16v fuel rail Specifications:
For more information on specifications, see product sheet .
| Supplied with brackets for | Volvo 200/700/900 series 8v/16v engines |
| Injection type specification | Bosch EV14 L-style |
| Inlet/outlet end thread | AN-8 ORB (see range) * |
| Extra port thread | AN -6 ORB (see range) * |
| Length | 363.00 mm (14.29") |
| Height | 32.00 mm (1.25") |
| Weight | 308.00 g (10.86 oz) |
| Fuel Compatibility | Gasoline, Petrol, Ethanol, E85, E100, Methanol |
| For Motorsport Use | YES |
| Replaces Old Part # | 100-01-201 **, 100-01-205 ** |
| Part # | 120-04-101 |
| EAN | 7340209506808 |
* not included, be sure to select the necessary fittings when placing an order
** old generation now replaced with the new next generation fuel pipe
• Nuke Performance Volvo 4cyl Red Engine 8v/16v fuel pipe includes:
1 x AN-8 ORB Full Flow Fuel Rail Profile for Volvo Redblock 8v/16v Engines
2 x Aluminum Brackets for Volvo Redblock 8v/16v Engines
1 x AN-6 ORB Plug
4 x Nuke Performance Injector safety clips
2 x MC6S M4x6mm stainless steel bolts
4 x K6S M6x10mm stainless steel bolts
2 x K6S M6x12mm stainless steel bolts
2 x M6 stainless steel washers
• Download product sheet (.pdf)
• Accessories / spare parts
• This fuel rail replaces our old Volvo 8v/16v versions with part numbers 100-01-201 and 100-01-205, which are no longer available for purchase.
• The fuel rail is supplied without fittings and injectors, these must be purchased as accessories.
