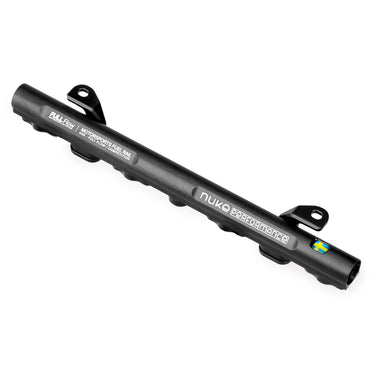

Volvo 4cyl White Engine fuel pipe
Nuke Performance fuel rail for the Volvo white 4cyl engine found in the first generation S40 and V40, oversized internals, lightweight design and fitted with our unique injection protection clips.
The Volvo 4cyl White Engine fuel rail comes with OEM Volve intake mounts and allows you to go with AN fuel lines and aftermarket injectors for your Volvo engine.
• Lightweight fuel pipe to fit Volvo 4cyl white engine
• For use with Bosch EV14L type injector *
• AN-8 ORB threads on both ends allow high fuel flow
• Comes with brackets for easy mounting on The OEM intake
• AN-6 ORB side outlet/inlet for optional applications
• Safe for all types of fuel, including alcoholic fuels such as E85
* This fuel rail is made for use with EV14L (long) 65mm injectors, when using other injectors the included brackets cannot be used.
Nuke Performance's latest generation of fuel rails provide an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that Nuke Performance fuel rails have become known for, providing a leak-proof seal even during a crash where the fuel rail would tear out of the intake manifold.
• Perfect fit for a Volvo 4cyl white engine, supplied with the necessary hardware to mount to the intake.
The Nuke Performance Volvo 4cyl White Engine fuel rail supplied with brackets for the 4cyl S40 and V40 engine. The fuel rail is equipped with brackets that fit the following models and years:
• S40 / V40 1.8 16V 1995-1999
• S40 / V40 1.9 T4 1997-2003
• S40 / V40 2.0 1995-2000
• S40 / V40 2.0T 1998-2004
• AN-8 ORB main ports and an AN -6 ORB side port, we offer a wide variety of fittings and adapters to choose from.
The fuel rail uses AN-8 ORB threaded fittings for each end and also offers an additional side port with AN-6 ORB thread. We offer a wide range of fittings and our low profile full flow banjo fittings for a space efficient installation.
AN -8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : strong> 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB Plug Part # : 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129 span>
• All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
A hallmark of Nuke Performance is the use of Injector Safety Clips, designed to maintain a flawless seal for injectors even under the load of extreme fuel pressure.
• Designed, and developed in Sweden, ensuring the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Volvo 4cyl White Engine fuel rail is of the highest possible quality and has the same signature as all other lightweight motorsport products from Nuke Performance. Co-developed with worldwide motorsport teams, Nuke Performance parts ensure that functionality, as well as design, meet the absolute highest standards, or even make their own.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.
There is no substitute for the quality of Nuke Performance. strong>
• Nuke Performance Volvo 4cyl White Engine fuel rail Specifications:
For more information on specifications, see product sheet. span>
| Supplied with brackets for | S40 / V40 1.8 16V 1995-1999S40 / V40 1.9 T4 1997-2003S40 / V40 2.0 1995-2000S40 / V40 2.0T 1998-2004 |
| specification | |
| EV14 L-style | |
| End of inlet/outlet threads | AN-8 ORB (see assortment) * |
| Extra port thread | AN-6 ORB (see assortment) * |
| Length | 318.00 mm (12.52") |
| Height | 32.00 mm (1.25") |
| Weight | 291.00 g (10.26 oz) |
| Fuel Compatibility | Gasoline, gasoline, ethanol, E85, E100, methanol |
| For motorsport use | YES |
| Replaces old part # | 100-01-202 ** |
| Part # | 120-04-102 |
| EAN | 7340209507232 |
* not included, be sure to select the necessary fittings when placing an order
** old generation fuel pipe with 3/4 UNF threads and not included mounting brackets
• Nuke Performance Volvo 4cyl White Engine fuel rail includes:
1 x AN -8 ORB Full Flow Fuel Rail Profile for Volvo 4cyl White Engine
2 x Aluminum Brackets for Volvo White Engine
1 x AN-6 ORB Plug
4 x Nuke Performance Injector Safety Clips
8 x MC6S M4x6mm Stainless Steel Bolts
4 x K6S M6x10 mm stainless steel bolts
• Download product sheet (.pdf)
• Accessories / Spare parts
• The fuel rail is delivered without fittings and injectors, these need to be purchased as accessories.
• This fuel rail replaces our old Volo 4cyl S40/V40 fuel rail with part number 100-01-202, which is no longer available. span>
