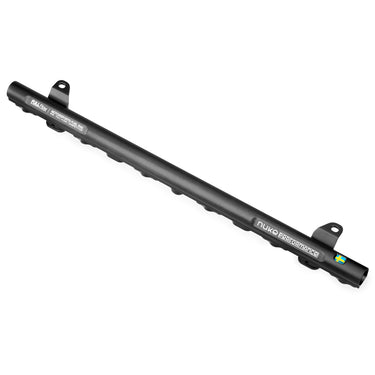

Volvo 6cyl White Engine 960/S90/V90 fuel pipe

Nuke Performance fuel rail for the Volvo 6cyl White Engine found in the Volvo 960/S90/V90, oversized internals, lightweight design and fitted with our unique injector safety clips.

The Volvo 6cyl White Engine 960/S90/V90 fuel rail comes with OEM Volve T6 intake mounts and allows you to go with AN fuel lines and aftermarket injectors for your Volvo T6 engine. p>

• Lightweight fuel pipe to fit Volvo 6cyl white engine
• For use with Bosch EV14L type injector *
• AN-8 ORB threads on both ends allow for high fuel flow
• Supplied with brackets for easy mounting on OEM T6 intake
• AN-6 ORB side outlet/inlet for optional applications
• Safe for all types of fuel, including alcoholic fuels such as E85

* This fuel rail is made to be used with EV14L (Long) 65mm injectors, when using other injectors they the supplied brackets cannot be used.

Nuke Performance's latest generation of fuel rails provide an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that Nuke Performance fuel rails have become known for, providing a leak-proof seal even during a crash where the fuel rail would tear out of the intake manifold.

• Perfect fit for a Volvo 6cyl T6 white engine, supplied with the necessary hardware to mount to the intake.
The Nuke Performance Volvo 6cyl White Engine The 960/S90/V90 fuel rail comes with brackets for the 6cyl T6 engine. The fuel rail is equipped with brackets to fit the following models and years:
• White block 960/S90/V90

• AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide variety of fittings and adapters to choose from.
The fuel rail uses AN-8 ORB threaded fittings for each end and also offers an additional side port with AN-6 ORB thread. We offer a wide range of fittings and our low profile full flow banjo fittings for a space efficient installation.

ORB to AN-8 Male Part # : 700-04-105
AN -8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : strong> 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB Plug Part # : 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129 span>

• All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
A hallmark of Nuke Performance is the use of Injector Safety Clips, designed to maintain a flawless seal for injectors even under the load of extreme fuel pressure.

This design prevents fuel spillage, even in scenarios where the fuel pump continues to run or there is residual pressure in the fuel system.

• Designed, and developed in Sweden, ensuring the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Volvo 4cyl White Engine fuel rail is of the highest possible quality and has the same signature as all other lightweight motorsport products from Nuke Performance. Co-developed with worldwide motorsport teams, Nuke Performance parts ensure that functionality, as well as design, meet the absolute highest standards, or even make their own.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.

There is no substitute for the quality of Nuke Performance. strong>

• Nuke Performance Volvo 6cyl White Engine 960/S90/V90 fuel rail Specifications:
For more information on specifications, see product sheet.

<<<<<<<<<<<

Supplied with brackets for	6cyl white block 960/S90/V90
Injector type specification	Bosch EV14 L style
End inlet/outlet threads	AN-8 ORB (see range) *
Extra port thread	AN-6 ORB (see assortment) *
Length	500.00 mm (19.68")
Height	32.00 mm (1.25")
Weight	427.00 g (15.06 oz)
Fuel Compatibility	Gasoline, Gasoline, Ethanol, E85, E100, Methanol
For motorsport use	YES
Replaces old part #	100-01-204 **
Part #	120-04-103
EAN	7340209508109

* not included, be sure to select the necessary fittings when placing an order
** old generation fuel rail with 3/4 UNF thread and did not include mounting brackets

• Nuke Performance Volvo 6cyl White Engine 960/S90/V90 fuel rail includes:
1 x AN-8 ORB Full Flow fuel rail profile for Volvo 6cyl white engine
2 x aluminum brackets for Volvo 6cyl white engine
1 x AN-6 ORB plug
6 x Nuke Performance Injector safety clips
12 x MC6S M4x6mm stainless steel bolts
4 x K6S M6x10mm stainless steel bolts

• Download product sheet (.pdf)
• Accessories / Spare parts

• The fuel rail is supplied without fittings and injectors, these need to be purchased as accessories.

• This fuel rail replaces our old Volo 6cyl 960/S90/V90 fuel rail part number 100-01-204, which is no longer available.
